1. Ultra-long Cycle Lifespan Delivers 6,000 cycles at 25°C and 80% Depth of Discharge (DOD), substantially reducing the total cost of ownership (TCO) for users.
2. Extended Service Life & Low Maintenance Adopts chemically stable battery formulation, featuring long service life and zero routine maintenance, lowering long-term operational costs.
3. Integrated Circuit Protection Built-in professional Battery Management System (BMS) provides all-round protection to prevent battery abuse caused by abnormal operating conditions.
4. Excellent Storage Performance Equipped with an ultra-low self-discharge (LSD) design with zero sulfation risk, supporting up to 6 months of long-term static storage.
5. High-efficiency Fast Charging Boasts superior charge and discharge conversion efficiency, effectively shortening charging time and improving equipment downtime utilization.
6. Outstanding High-temperature Resistance Adapts to extreme high-temperature operating environments, with a maximum working temperature of up to +60°C, covering diverse complex application scenarios.

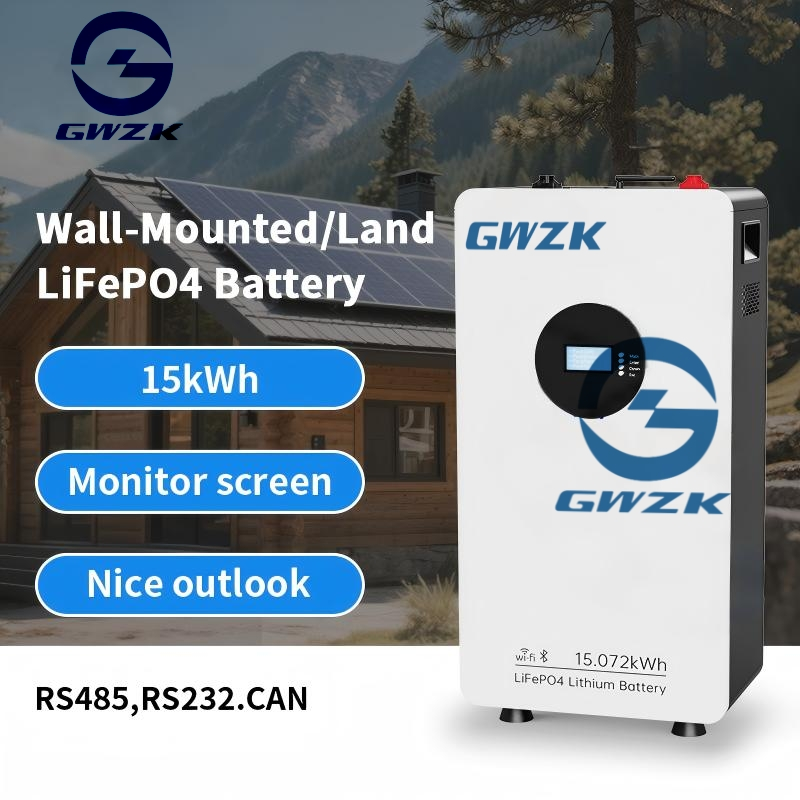

7. Multi-protocol Communication Support Compatible with mainstream industrial communication protocols including RS485, RS232 and CAN, ensuring smooth system linkage and data transmission.
8. Wide Compatibility Perfectly compatible with most mainstream inverters on the market, facilitating flexible system matching and installation.
Item | GWB48-314-1 | GWB48-314-2 | GWB51.2-314-1 | GWB51.2-314-2 |
|---|---|---|---|---|
Rated Voltage | 48V | 48V | 51.2V | 51.2V |
Energy Capacity | 15.07kWh | 15.07kWh | 16.07kWh | 16.07kWh |
Cell Configuration | 15S-1P | 15S-1P | 16S-1P | 16S-1P |
Cell Specification | 3.2V 314Ah | 3.2V 314Ah | 3.2V 314Ah | 3.2V 314Ah |
Rated Capacity | 314Ah | 314Ah | 314Ah | 314Ah |
Max. Parallel Connection | Up to 16 units | Up to 16 units | Up to 16 units | Up to 16 units |
BMS Communication | RS485 | RS485 | RS485 | RS485 |
Charging Efficiency | ≥98% | ≥98% | ≥98% | ≥98% |
Design Service Life (25°C) | 15 Years | 15 Years | 15 Years | 15 Years |
Cycle Life (80% DOD, 25°C) | 6,000 Cycles | 6,000 Cycles | 6,000 Cycles | 6,000 Cycles |
Charge Cut-off Voltage | 54V | 54V | 57.6V | 57.6V |
Discharge Cut-off Voltage | 40.5V | 40.5V | 43.2V | 43.2V |
Max. Continuous Charging Current | 150A | 150A | 150A | 150A |
Max. Continuous Discharging Current | 150A | 150A | 150A | 150A |
Factory Pre-charged SOC | 30%-50% | 30%-50% | 30%-50% | 30%-50% |
Operating Temperature | -10°C ~ +55°C | -10°C ~ +55°C | -10°C ~ +55°C | -10°C ~ +55°C |
Charging Temperature Range | 0°C ~ +55°C | 0°C ~ +55°C | 0°C ~ +55°C | 0°C ~ +55°C |
Storage Temperature Range | -20°C ~ +60°C | -20°C ~ +60°C | -20°C ~ +60°C | -20°C ~ +60°C |
Dimensions (L×W×H) | 740×395×250 mm | 740×395×250 mm | 740×395×250 mm | 740×395×250 mm |
Weight | 112-115 kg | 112-115 kg | 112-115 kg | 112-115 kg |
Q1: Is the installation process complicated?

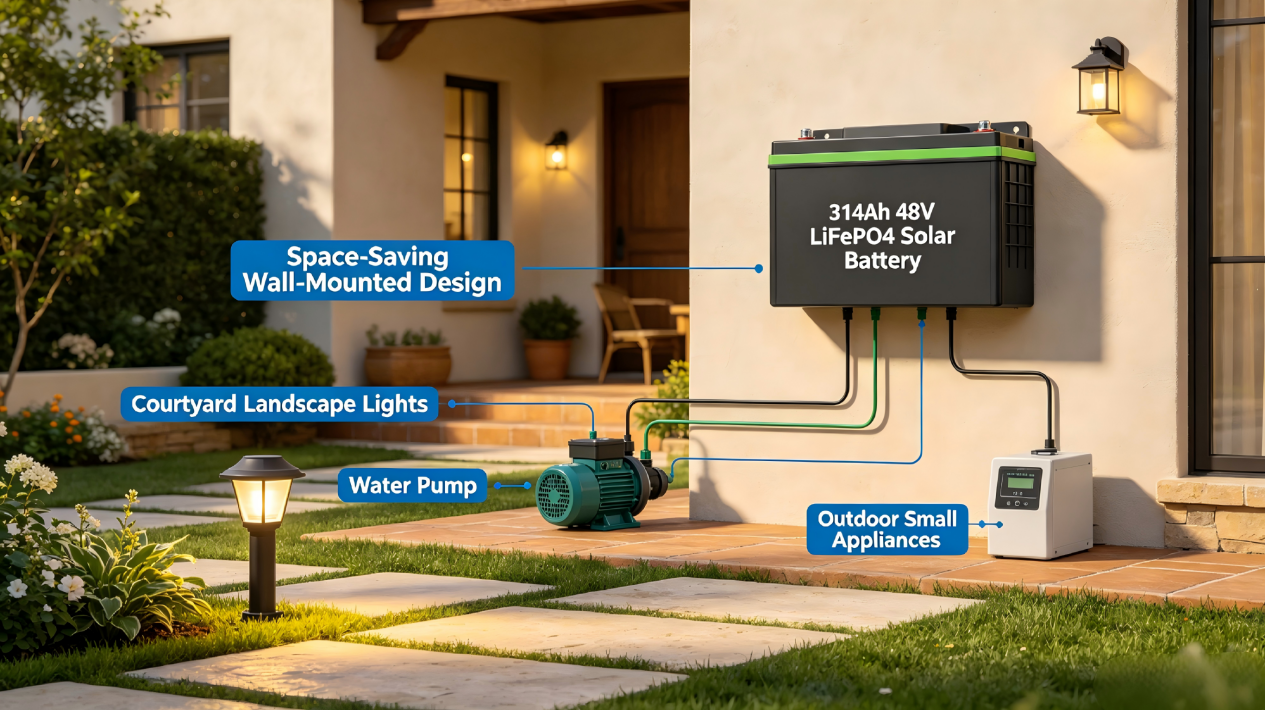

A: This battery supports dual installation modes (wall-mounted & floor-standing). It is delivered as an integrated finished product with no complicated assembly required. On-site installation only includes fixing the device, connecting positive/negative terminals and communication cables, which can be completed by a general electrician efficiently.
Q2: What type of cell is adopted? Is the battery safe?
A: This product adopts lithium iron phosphate (LiFePO4) cells, which features excellent high-temperature resistance and ultra-low risk of fire and explosion. The built-in intelligent BMS provides comprehensive protection against over-charge, over-discharge, over-current, over-temperature and short circuit, ensuring long-term safe and stable operation.
Q3: Does the battery support parallel capacity expansion?

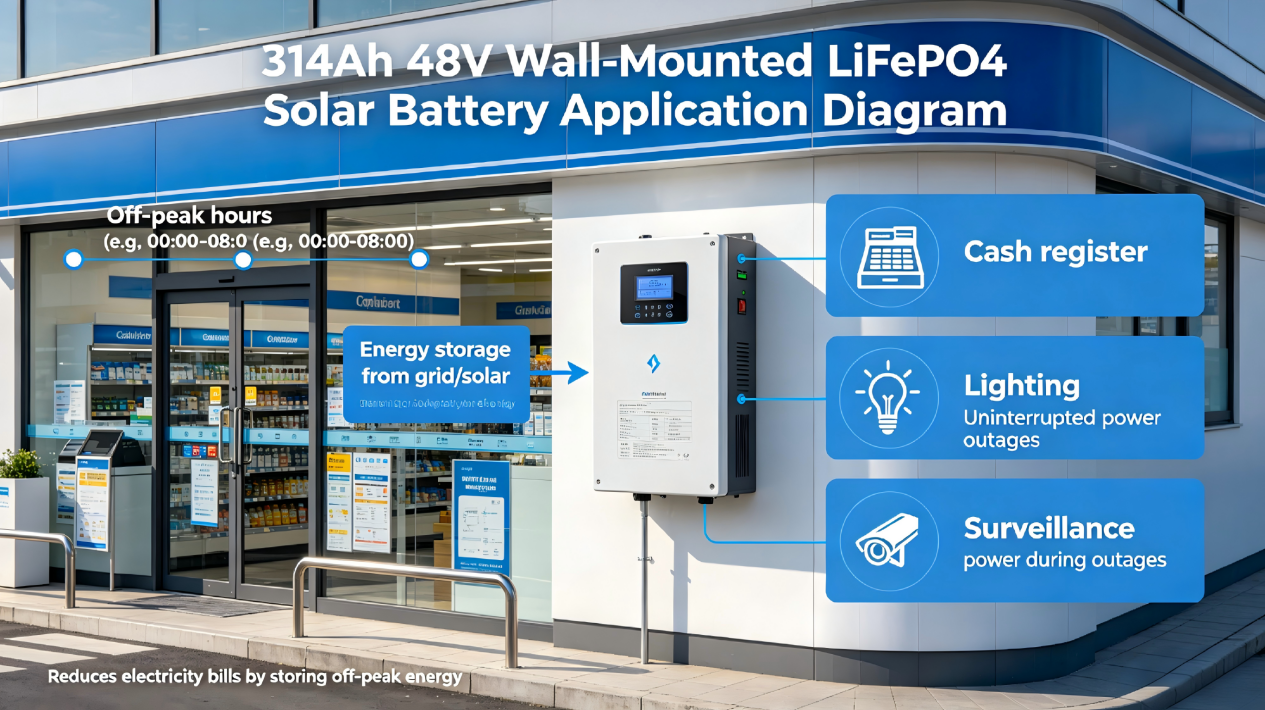

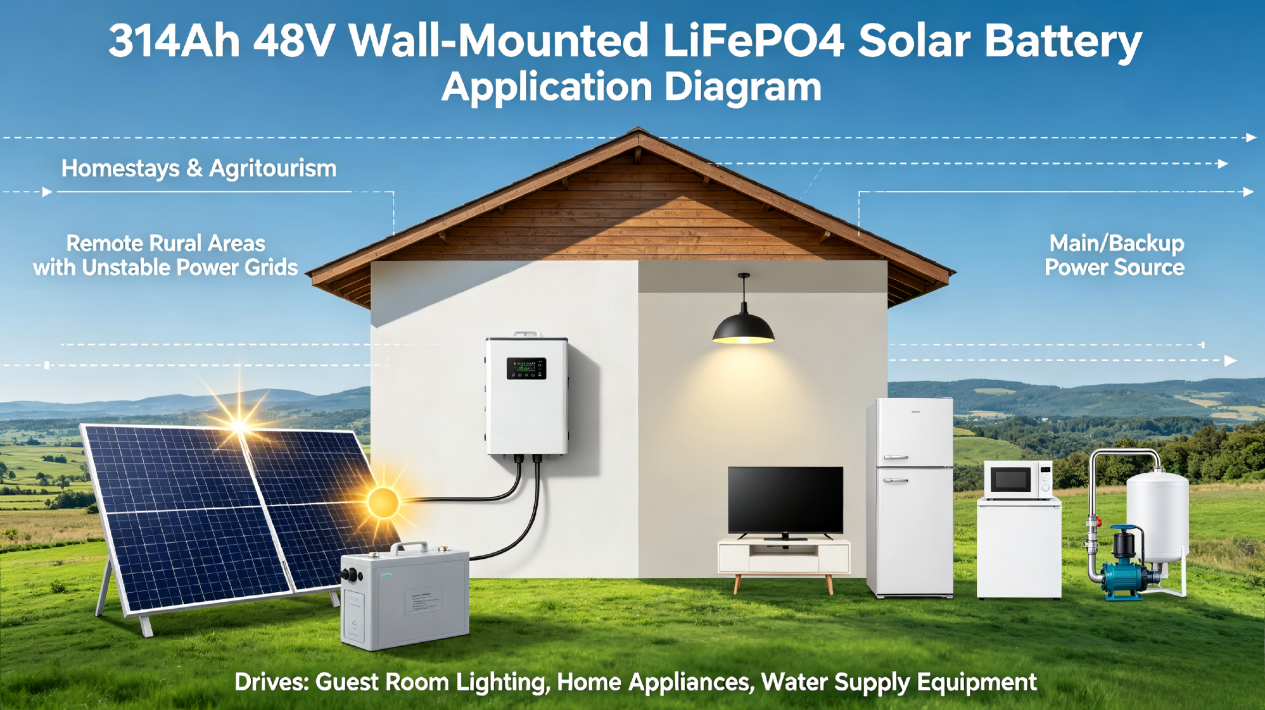

A: It supports parallel connection of multiple identical battery units. Users can flexibly expand the system capacity according to actual demand, perfectly adapting to household energy storage upgrade and small-to-medium industrial and commercial energy storage scenarios.
Q4: Can the battery work in high and low temperature environments?
A: It features a wide temperature adaptation range: charging temperature ranges from 0°C to 45°C, and discharging temperature ranges from -20°C to 60°C. It can be stably installed and operated in indoor spaces, garages, power distribution rooms and other conventional scenarios.
Q5: Does the product require daily maintenance?
A: It is a maintenance-free battery. No water refilling, parameter calibration or routine daily maintenance is required. Users only need to keep the installation environment ventilated and dry, and avoid blocking the heat dissipation area of the device.
