// Product Advantages
1. Vertical axis structure and low-wind-speed high-efficiency power generation

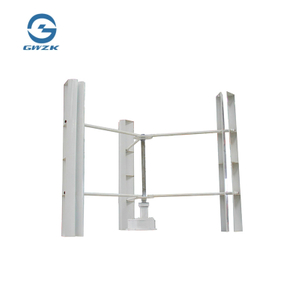

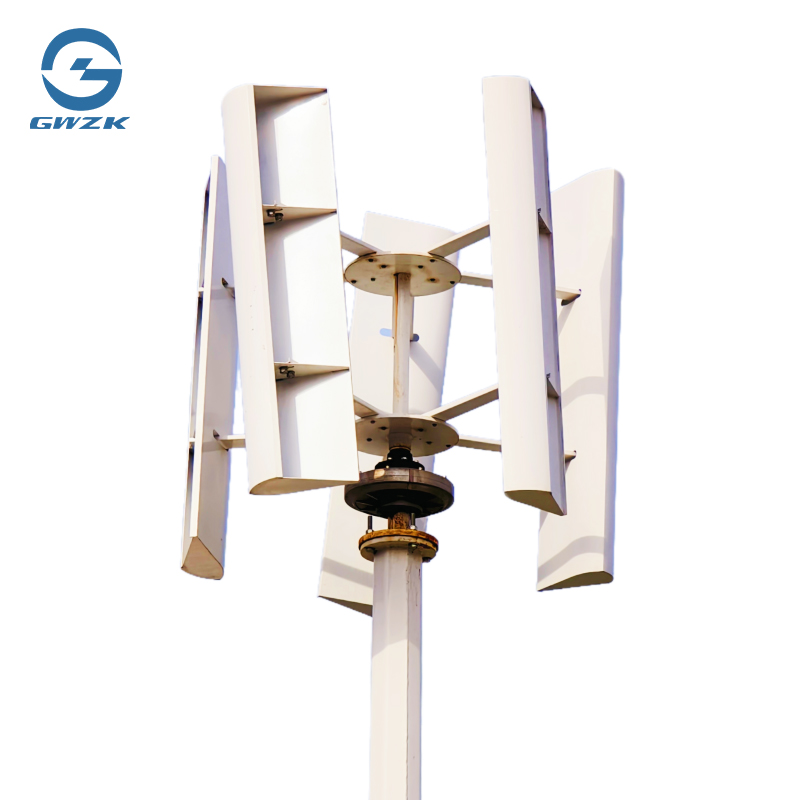

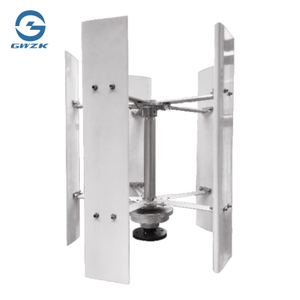

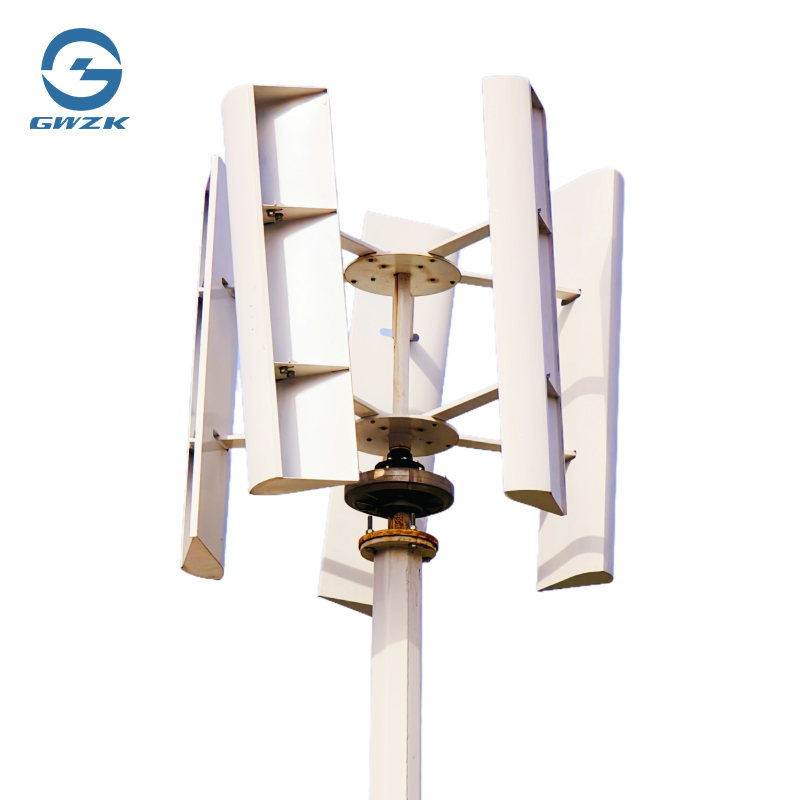

As the core equipment of the distributed energy solution, the GWH-500W vertical-axis wind turbine adopts an H-shaped double-support point structure. The generator shaft is perpendicular to the ground and can capture wind energy in any direction of 360° without the need for a wind-facing device. Its starting wind speed is as low as 1.5m/s, and the power generation within the wind speed range of 5-8m/s is 10%-30% higher than that of the traditional horizontal shaft model. In areas with an average annual wind speed of 4.5m/s, the annual power generation can reach 1,800 kilowatt-hours, meeting the daily electricity demand of households. This feature makes it an ideal choice for off-grid power supply in remote areas.
2. Intelligent control and typhoon resistance design
Equipped with an electronic braking system and overvoltage protection device, it can withstand super typhoons of 50m/s. The intelligent control system ensures that the fan maintains the optimal rotational speed and avoids overspeed damage. In addition, the noise of the equipment is less than 40dB, making it suitable for urban residential areas or ecological protection zones.
3. Durability and low maintenance cost
It adopts permanent magnet generators and aluminum alloy blades, with a design life of up to 20 years. The blades remain stable at an extreme wind speed of 25m/s.
4. Wind-solar complementarity and economic benefits
Combined with solar panels to form an all-weather power generation system, it is supplemented by wind power at night or on rainy days, increasing the overall power generation efficiency by 40% and saving electricity costs.
5. Flexible installation and scene adaptation
Supports ground or roof installation, no need for high-altitude operations. H-shaped structure wind turbine, suitable for narrow Spaces.
| Rated power | 500W |
| Rated voltage | 24V/48V |
| Cut-in wind speed | 3m/s |
| Start wind speed | 1.5m/s |
| Rated wind speed | 10m/s |
| Safe wind speed | ≤50m/s |
| Wind wheel diameter | 1.16m |
| Tower height | 10m |
| Blade quantity | 5 |
| Blade material | Aluminumalloy |
| Body material | Aluminumalloy |
| Magnet material | N42Sh |
| Generator type | Three-phase AC permanent magnet synchronous generator |
| Control method | Electromagnetic brake + electromagnetic brake |
| Wind direction adjustment | Automatic adjustment of windward angle |
| Life span/Protection | ≥20 years/IP54 |
| Net/Gross | 32kg/60kg |
// The following are the common application scenarios of the GWH-500W vertical-axis wind turbine:
1. Off-grid power supply in remote areas
In mountainous areas, islands and grasslands with weak power grid coverage, the GWH-500W vertical-axis wind turbine can independently provide stable electricity for households, outposts or small communities. Its low starting wind speed (1.5m/s) and typhoon-resistant design (50m/s) enable it to operate stably in complex environments and solve the problem of electricity supply in areas without electricity.
2. Energy upgrading in cities and communities
In high-density urban environments, the equipment can be installed on rooftops, parking lots or community green Spaces to provide clean energy for homes, schools or commercial buildings. Its silent operation (<40dB) and compact design are particularly suitable for residential areas.
3. Increase efficiency in agriculture and animal husbandry
In agricultural irrigation, livestock farms and greenhouse scenarios, the equipment can drive water pumps, temperature control systems and ventilation equipment. A microgrid composed of vertical-axis fans and photovoltaic systems can be adopted to ensure the stable operation of the constant-temperature breeding system.
4. Transportation and infrastructure guarantee
In highway service areas, lighthouses and weather stations, equipment can be used to build "zero-carbon energy stations". Its low maintenance feature and wind resistance enable it to operate reliably in extreme environments such as coastal lighthouses and mountain meteorological stations, replacing traditional diesel power generation.
5. Emergency disaster relief and temporary power supply
In natural disasters or remote construction scenarios, the equipment can be quickly deployed as a temporary power source. Its ground installation design (no need for high-altitude operations) and portability make it suitable for scenarios such as earthquake-stricken areas and field scientific research camps. A single device can support the night lighting and communication equipment power supply for 5 to 8 tents.
6. Environmental protection and ecological monitoring
In nature reserves or ecological monitoring stations, the equipment can power sensors, cameras and data transmission devices. The monitoring equipment is powered by a "wind power + photovoltaic" system to achieve the dual goals of ecological protection and energy self-sufficiency.
// GWH-500W Vertical Axis Wind Turbine User Guide
1. Do not disassemble the equipment by yourself. If the equipment malfunctions, please contact the designated maintenance point.
2. Without authorization, no unit or individual may make any changes to the structure, safety and performance design of the equipment.
3. When using this device, relevant laws and regulations should be followed and the legitimate rights and interests of others should be respected.
4. The battery of the wind turbine must be connected before it is connected to the controller.
5. If any problems or malfunctions occur after not following the requirements of this manual, they will not be covered by the warranty.
// FAQ
Q: Which scenarios are suitable for installing the GWH-500W vertical-axis wind turbine?
A: It is applicable to low-wind-speed areas with an annual average wind speed of ≥1.5m/s, such as urban rooftops (requiring ≥1.5 square meters of flat space), remote rural areas, islands, mountainous regions, agricultural greenhouses and smart street lamp poles. The equipment supports ground/roof installation and does not require high-altitude operations.
Q: Is it complicated to install this equipment? Is a professional team needed?
A: Ground installation does not require a crane, and the foundation fixation can be completed by two people (a cement base is needed). The load-bearing capacity of the roof installation needs to be confirmed.
Q: Where are the advantages of wind power generation compared with solar panels?
A: Wind power generation provides continuous power supply at night or on rainy days and can complement photovoltaic power generation 24 hours a day.
