Long Cycle Life — 6000 cycles (25°C, 80% DOD), effectively reducing the total cost of ownership.
Fast Charging — Excellent charge and discharge efficiency saves time and reduces downtime.
Extended Service Life — Low-maintenance battery with stable chemical composition.
Excellent Heat Resistance — Suitable for a wider range of applications with abnormally high ambient temperatures, up to +60°C.
Built-in Circuit Protection — Integrated Battery Management System (BMS) to prevent battery abuse.

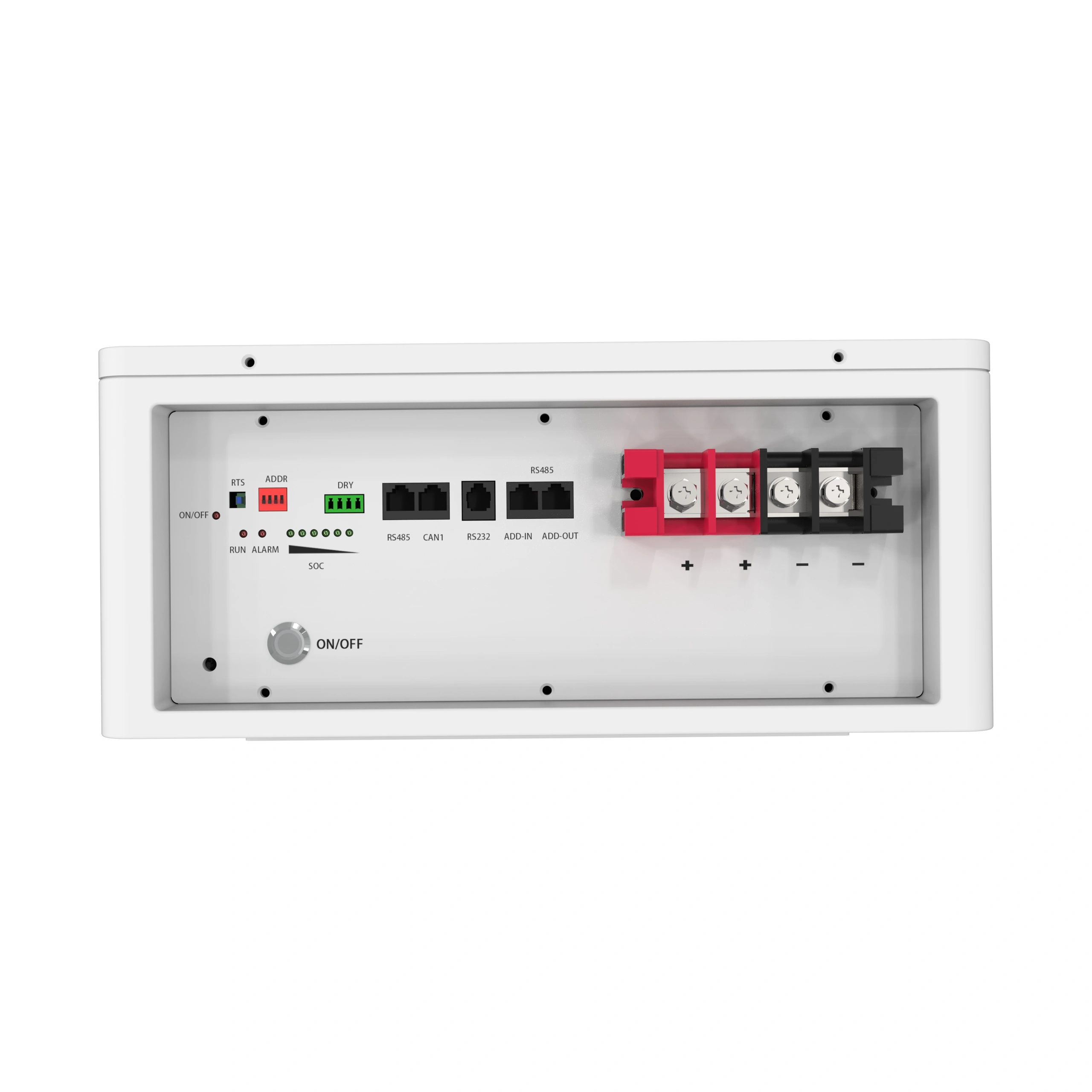

Multiple Communication Protocols Supported — RS485, RS232, CAN, etc.
Superior Storage Performance — Ultra-low self-discharge rate (LSD) with no sulfation risk, storable for up to 6 months.
Strong Compatibility — Compatible with various inverters.

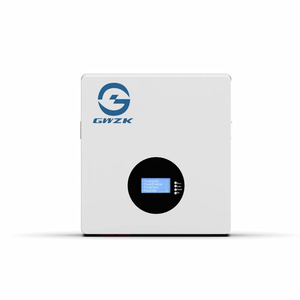

Parameter | GWB25.6-100 | GWB25.6-200 | GWB51.2-100 | GWB51.2-200 | GWB51.2-280 | GWB51.2-314 |
|---|---|---|---|---|---|---|
Rated Voltage | 25.6V | 25.6V | 51.2V | 51.2V | 51.2V | 51.2V |
Nominal Capacity | 100Ah | 200AH | 100Ah | 200AH | 280AH | 314AH |
Energy | 2.56KWh | 5.12KWh | 5.12KWh | 10.24KWh | 14.36KWh | 16.07KWh |
Cell Spec | 3.2V 100AH | 3.2V 200AH | 3.2V 100AH | 3.2V 200AH | 3.2V 280AH | 3.2V 314AH |
Configuration | 8S-1P | 8S-1P | 16S-1P | 16S-1P | 16S-1P | 16S-1P |
Charge Cut-off Voltage | 29.2V | 29.2V | 57.6V | 57.6V | 57.6V | 57.6V |
Discharge Cut-off Voltage | 22.4V | 22.4V | 43.2V | 43.2V | 43.2V | 43.2V |
Max Continuous Charging Current | 50A | 100A | 50A | 100A | 100A | 100A |
Max Continuous Discharging Current | 100A | 200A | 100A | 200A | 200A | 200A |
Dimension (LWH) mm | 390370160 | 600370160 | 600370160 | 850500160 | 800512260 | 800523260 |
Weight (kg) | 24 | 41.2 | 41.2 | 80 | 124.3 | 130 |
Module Connection | Max 16 units in parallel | Max 16 units in parallel | Max 16 units in parallel | Max 16 units in parallel | Max 16 units in parallel | Max 16 units in parallel |
BMS Communication | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN |
Service Life (25°C) | 15 years | 15 years | 15 years | 15 years | 15 years | 15 years |
Cycle Life (80% DOD, 25°C) | 6000 cycles | 6000 cycles | 6000 cycles | 6000 cycles | 6000 cycles | 6000 cycles |
Charging Efficiency | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% |
Shipping SOC | 30%-50% SoC | 30%-50% SoC | 30%-50% SoC | 30%-50% SoC | 30%-50% SoC | 30%-50% SoC |
Operating Temperature | Charge: 0~55°C Discharge: -10~55°C | Charge: 0~55°C Discharge: -10~55°C | Charge: 0~55°C Discharge: -10~55°C | Charge: 0~55°C Discharge: -10~55°C | Charge: 0~55°C Discharge: -10~55°C | Charge: 0~55°C Discharge: -10~55°C |
Storage Temperature | -20~60°C | -20~60°C | -20~60°C | -20~60°C | -20~60°C | -20~60°C |
Q1: Is the installation complicated? What are the installation requirements?

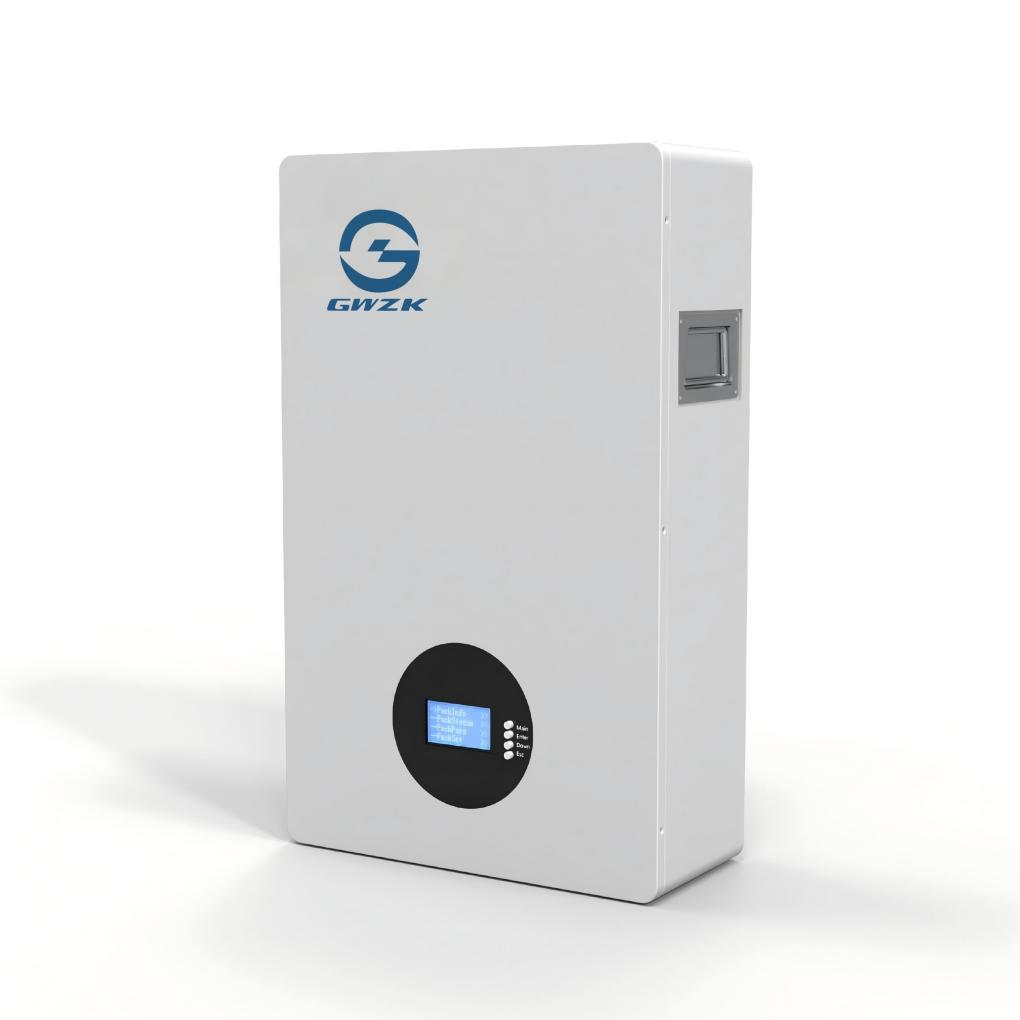

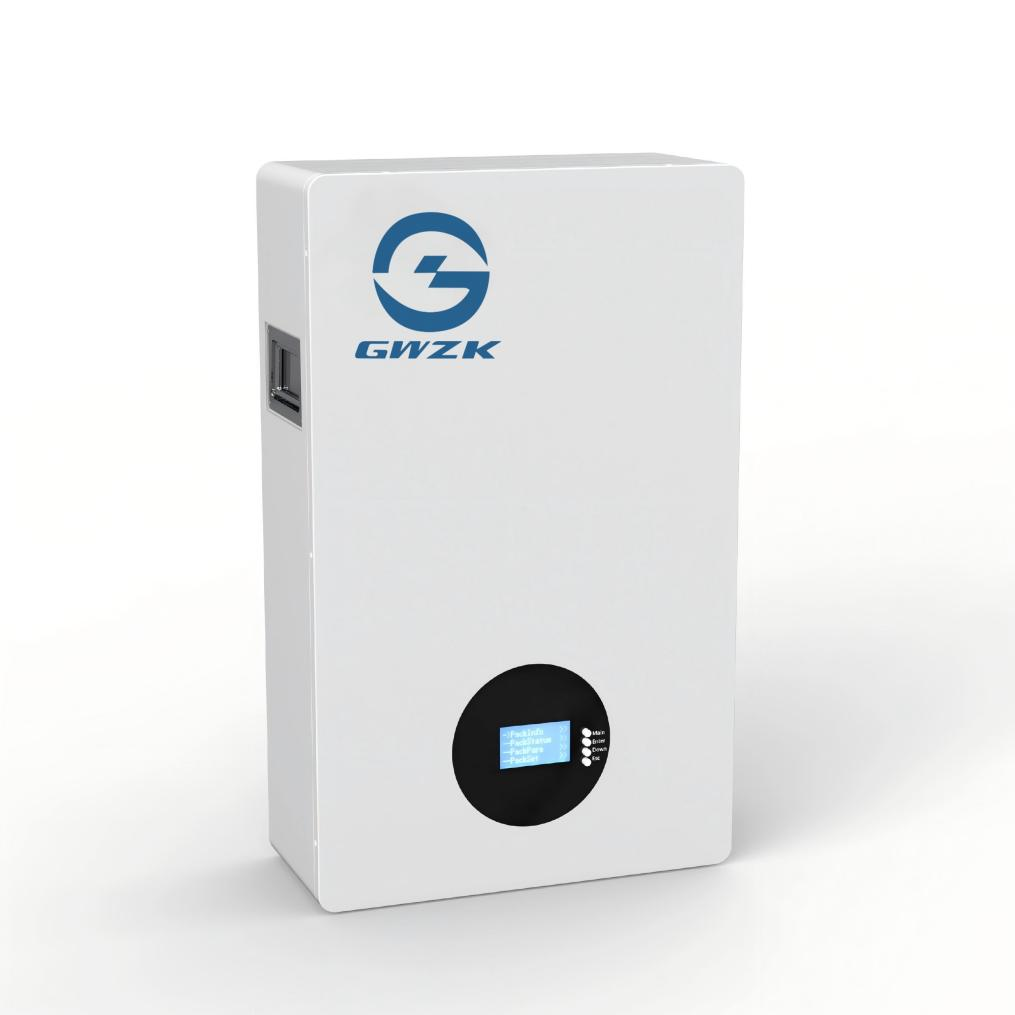

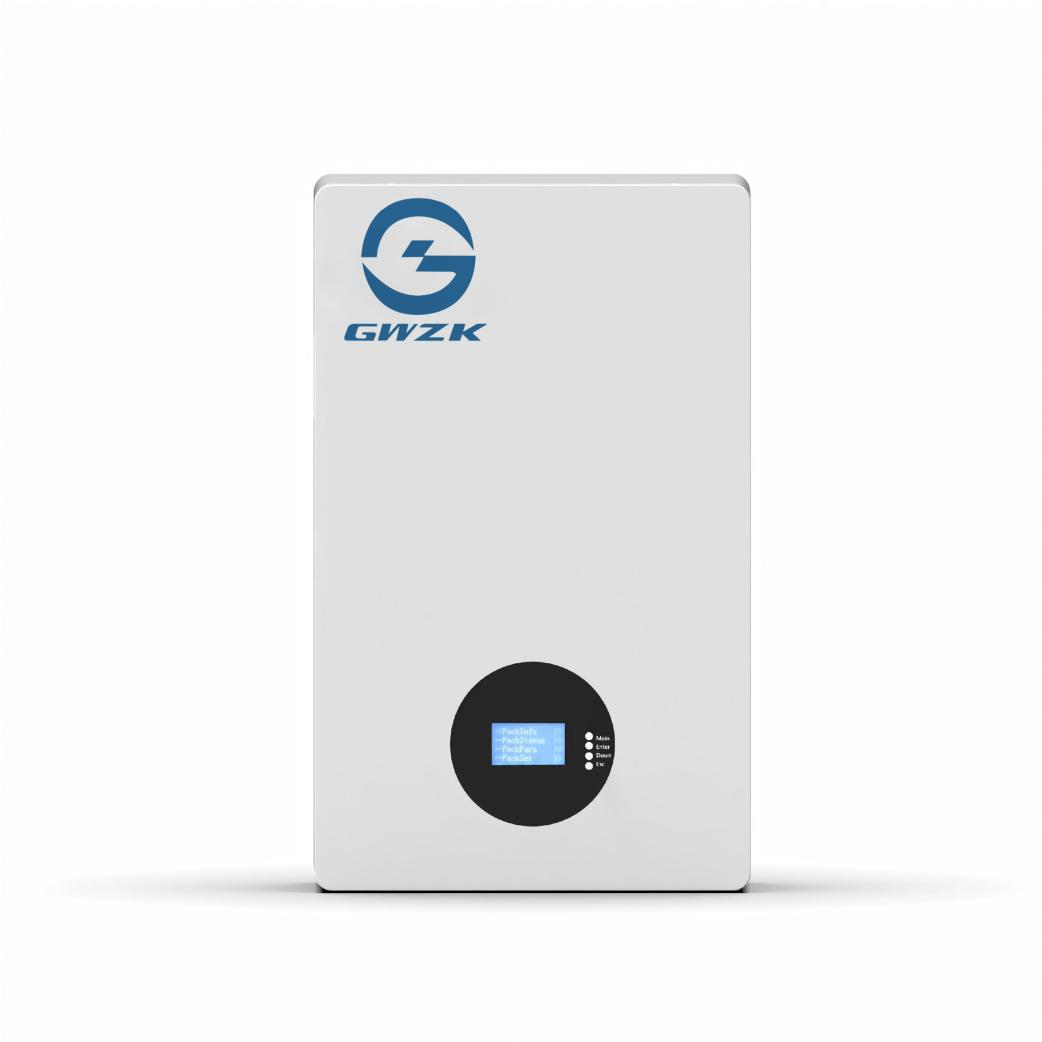

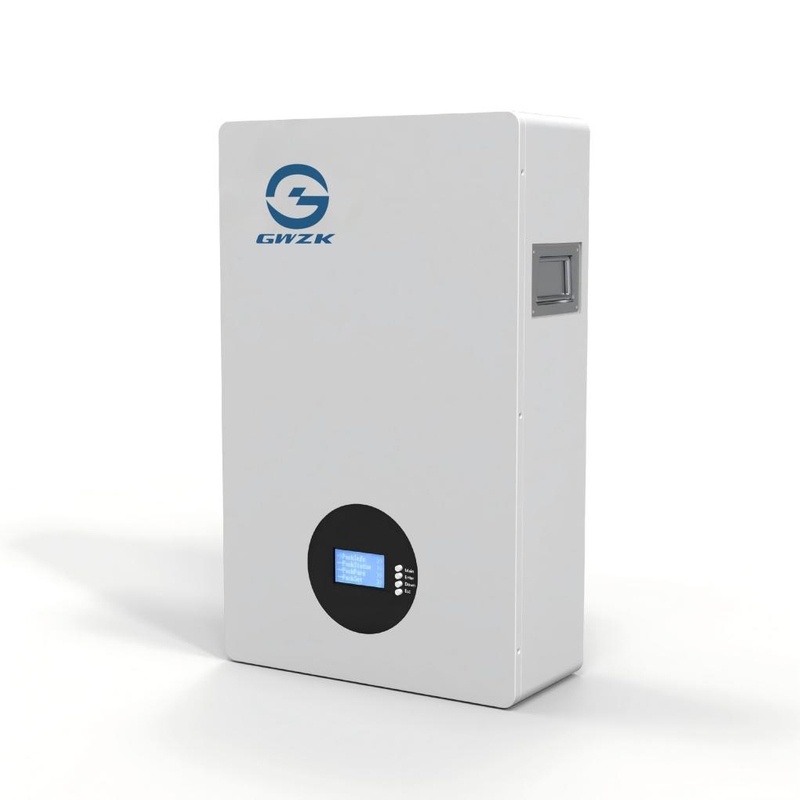

A: Wall-mounted design with built-in mounting plate, which can be fixed directly on the wall without occupying floor space. Only requirements: qualified wall bearing capacity, well-ventilated and dry environment, away from moisture and heat sources.
Q2: Can it be used with photovoltaic inverters?

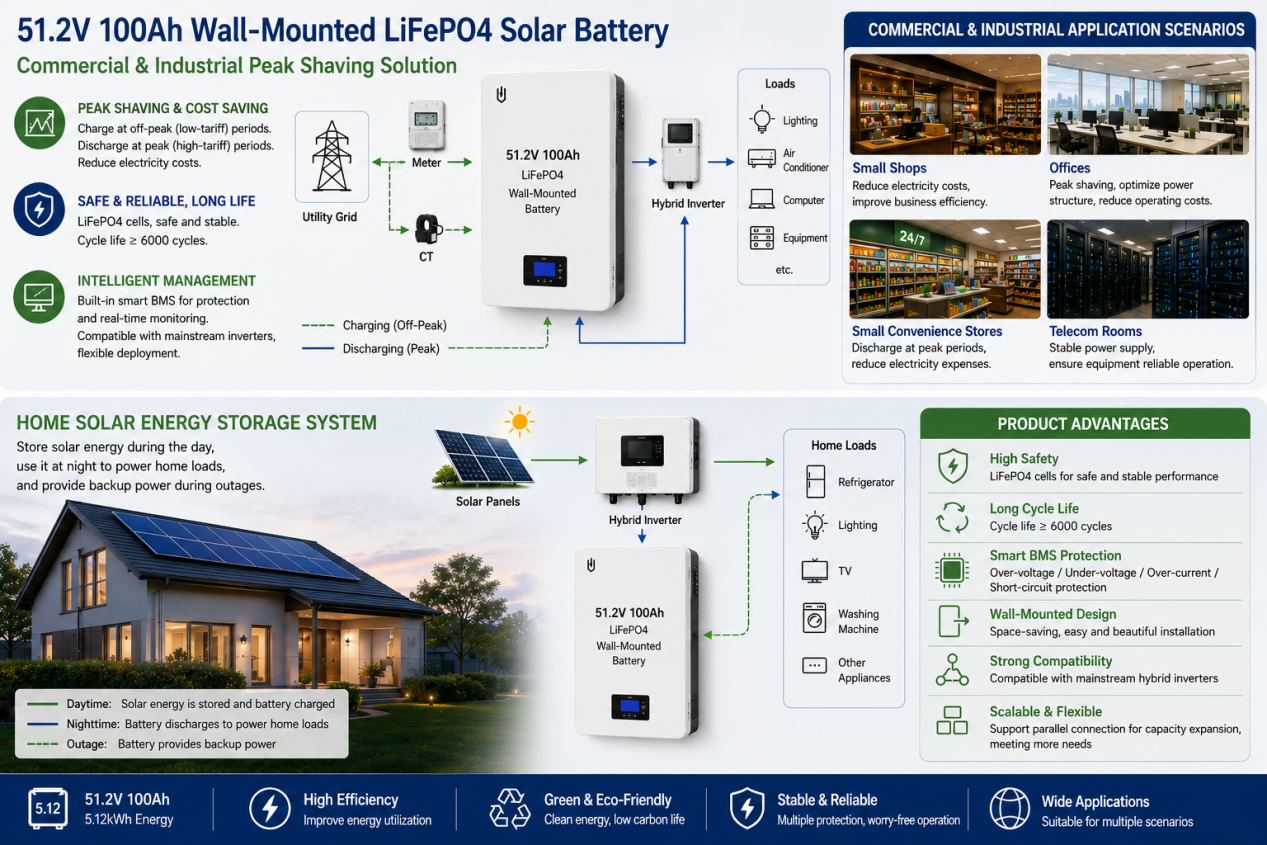

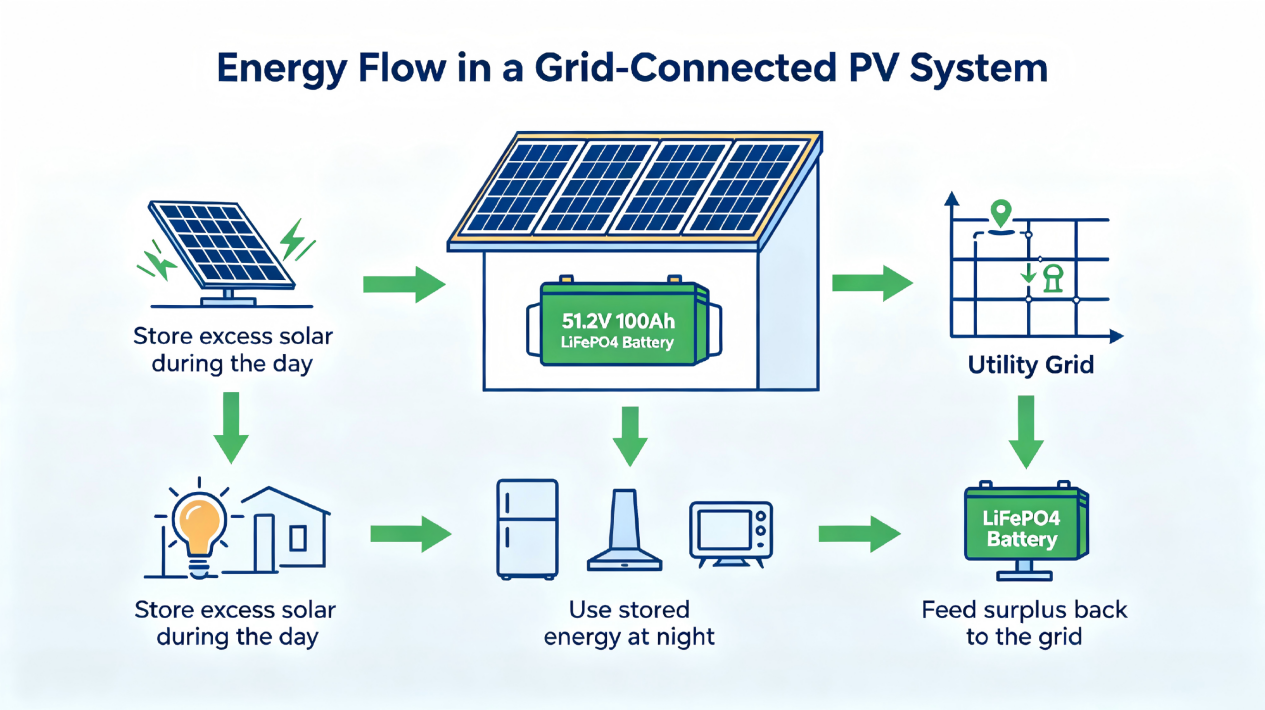

A: Compatible with 48V/51.2V low-voltage off-grid and energy storage inverters. Built-in RS485/CAN communication supports PV charging and automatic backup switching during power outage.
Q3: Can multiple units be connected in parallel for capacity expansion? What is the maximum quantity?
A: The same model and batch can be connected in parallel, up to 16 units maximum. It realizes voltage regulation balance and synchronous charge & discharge, suitable for energy capacity expansion.
Q4: Is it low-temperature resistant? Can it work normally in winter?
A: Discharge temperature: -20℃～60℃
It can supply power for household appliances and emergency use normally even at minus temperature in winter.
Charging temperature: 0℃～55℃
Do not charge with high current below 0℃, otherwise it will affect battery service life.
Q5: Does it require daily maintenance?
A: Maintenance-free design, just keep the environment ventilated and dry. For long-term storage, keep SOC at 50%-70%, and recharge every 3-6 months.
