// Product Advantages
1. High efficiency permanent magnet power generation technology
Using three-phase AC permanent magnet synchronous generator, magnetic circuit optimization design, power generation efficiency is 15% higher than the traditional excitation motor, at rated wind speed (10m/s) can reach more than 92% power conversion. The low speed and high torque feature enables the generator to output 70% of its rated power at 6m/s wind speed, which is suitable for more wind fields.
2. Intelligent full-time power tracking system
Equipped with self-developed MPPT (maximum power point tracking) control algorithm, real-time monitoring of wind speed, wind direction and output power, dynamic adjustment of blade pitch Angle, to ensure the maximum power generation efficiency of the full wind speed range (3-25m/s). The measured results show that the system response time is less than 0.5 seconds, and the annual power generation is increased by 30%-36% compared with similar products.
3. Durable design for extreme environments
The whole machine has passed IP54 protection grade certification, the blades are made of high-strength glass fiber reinforced composite material, the surface is coated with anti-ultraviolet coating, and the salt spray corrosion resistance is more than 1000 hours. The tower adopts hot-dip galvanizing process, which can resist 50m/s excessive wind speed and extreme temperature difference.
4. Fully automated security protection mechanism
Equipped with electromagnetic braking protection system, in case of sudden strong winds (> 25m/s), it can achieve over-speed protection stop within 30 seconds. The intelligent variable pitch system supports the automatic feathering function, and adjusts the blade windward Angle in real time through the Angle sensor to ensure the equipment's safe operation under extreme conditions, and the cumulative trouble-free operation time exceeds 50,000 hours.

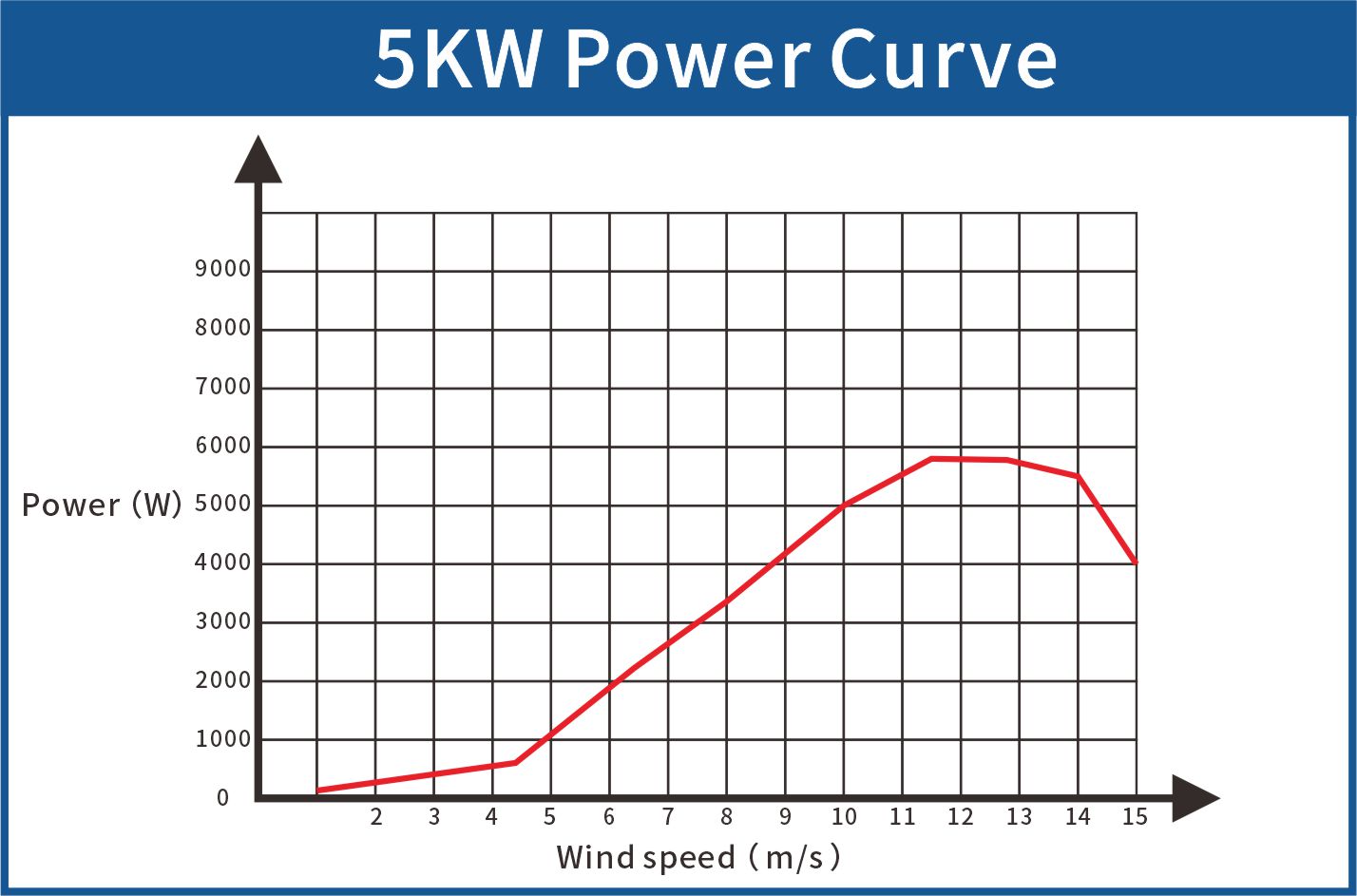

| Rated power | 5KW |
| Rated voltage | 220V/240V/380V |
| Cut-in wind speed | 3m/s |
| Start wind speed | 2m/s |
| Rated wind speed | 10m/s |
| Safe wind speed | ≤50m/s |
| Wind wheel diameter | 5.4m |
| Tower height | 10m |
| Blade quantity | 3 |
| Blade material | Reinforced fiberglass composite materia |
| Body material | Reinforced die-cast steel |
| Magnet material | N42Sh |
| Generator type | Three-phase AC permanent magnet synchronous generator |
| Control method | Electromagnetic brake + electromagnetic brake |
| Wind direction adjustment | Automatic adjustment of windward angle |
| Life span/Protection | ≥20 years/IP54 |
| Net/Gross | 230kg/265kg |

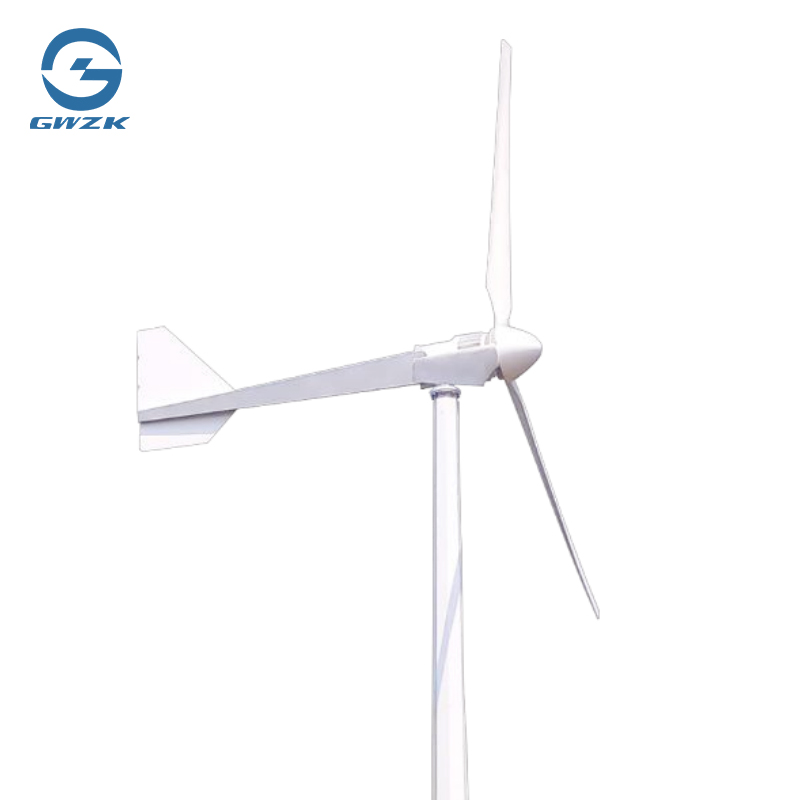

// The following are the common application scenarios of the GWS-5KW horizontal axis wind turbine:
1.Home off-grid power supply
It is suitable for single family houses in remote rural areas and mountainous areas. With energy storage battery pack, it can independently meet the daily electricity consumption (lighting, home appliances, small heating equipment) of the family, and the annual power generation is about 12-15,000 degrees, reducing the dependence on the grid and reducing the cost of electricity.
2. Small business and agricultural scene
Provide stable power for farms, livestock farms, small B&Bs, support irrigation equipment, cold storage, monitoring system operation. Low noise design (≤65dB) to avoid interference with the surrounding environment, corrosion resistant blade suitable for high humidity/dusty agricultural environment.
3. Distributed power generation project
It can be connected to the community microgrid or small power station to form a wind-solar complementary scheme with the photovoltaic system to increase the proportion of renewable energy. In the area of annual average wind speed ≥5m/s, the annual equivalent full-load operation time of a single device exceeds 2000 hours, and the power generation efficiency is 30% better than that of similar products.
4. Independent power supply in remote areas
Meet the needs of islands, border posts, field monitoring stations and other non-grid coverage scenarios. 2m/s ultra-low starting wind speed ADAPTS to weak wind environment, 50m/s anti-typhoon design guarantees continuous power supply in extreme weather, and intelligent control system realizes unattended operation.
5. Emergency standby power
As a backup energy source for communication base stations and disaster relief temporary camps, it automatically starts when the mains is interrupted. Electromagnetic braking + feathering protection mechanism ensures safe shutdown of equipment, seamless switching to power generation mode after quick recovery, with an average failure recovery time of < 10 minutes.
// FAQ
Q: What are the requirements for the installation site?
A: The tower should be installed in an open area without shelter (such as the roof, plain or hillside). The recommended height of the tower is 10-15 meters to reduce ground wind resistance. The local wind resources and geological carrying capacity should be confirmed in advance.
Q: What if the goods are defective upon arrival at the port of destination?
A: We will make a new batch of goods and then ship to the customer. The mode of transport will be discussed according to the specific CBM.
Q: Can it be used with solar panels?
A: Support seamless integration of wind-solar complementary systems, unified management through intelligent controllers, power generation stability increased by 40%.
