// Product Advantages
1. Super efficient energy conversion system
With the combination of reinforced nylon fiber material and permanent magnet generator, the starting wind speed is as low as 2m/s, the rated wind speed of 10m/s can reach 500W full load output, and the annual power generation can reach 1825 kw/h, which is significantly improved compared with the traditional model. The unique aerodynamic blade design and patented winding structure lead the industry by 30% power generation efficiency at the same wind speed.
2. Intelligent control and stability
Equipped with MPPT maximum power tracking controller, real-time optimization of output voltage, system efficiency increased by 20%-30%, with automatic direction adjustment device, to ensure stable power supply in weak wind environment. The patented permanent magnet alternator reduces torque loss by up to 18% and ADAPTS to extreme temperature differences.
3. Corrosion resistant and durable design
The machine adopts reinforced die-cast aluminum and reinforced nylon fiber blades, which are suitable for coastal areas with high humidity and salt spray. The fatigue life of the blade is more than 100,000 hours, and the survival wind speed is 50m/s, which greatly reduces the maintenance cost.
4. Flexible application in multiple scenarios
Support off-grid and grid-connected dual modes, can be combined with solar panels to form a wind-solar complementary system, comprehensive power generation increased by 40%. Typical applications include: rural home power supply (daily power generation 5-8 degrees), island base station backup power supply (72 hours), camping site lighting (adaptive battery) and so on.
5. Environmental protection and economy
It reduces carbon dioxide emissions by 0.8 tons per year, equivalent to planting 45 trees. Compared with diesel generators, the operating cost is reduced by 85% and the payback period is short. Installation operation is simple, one person can complete the installation.

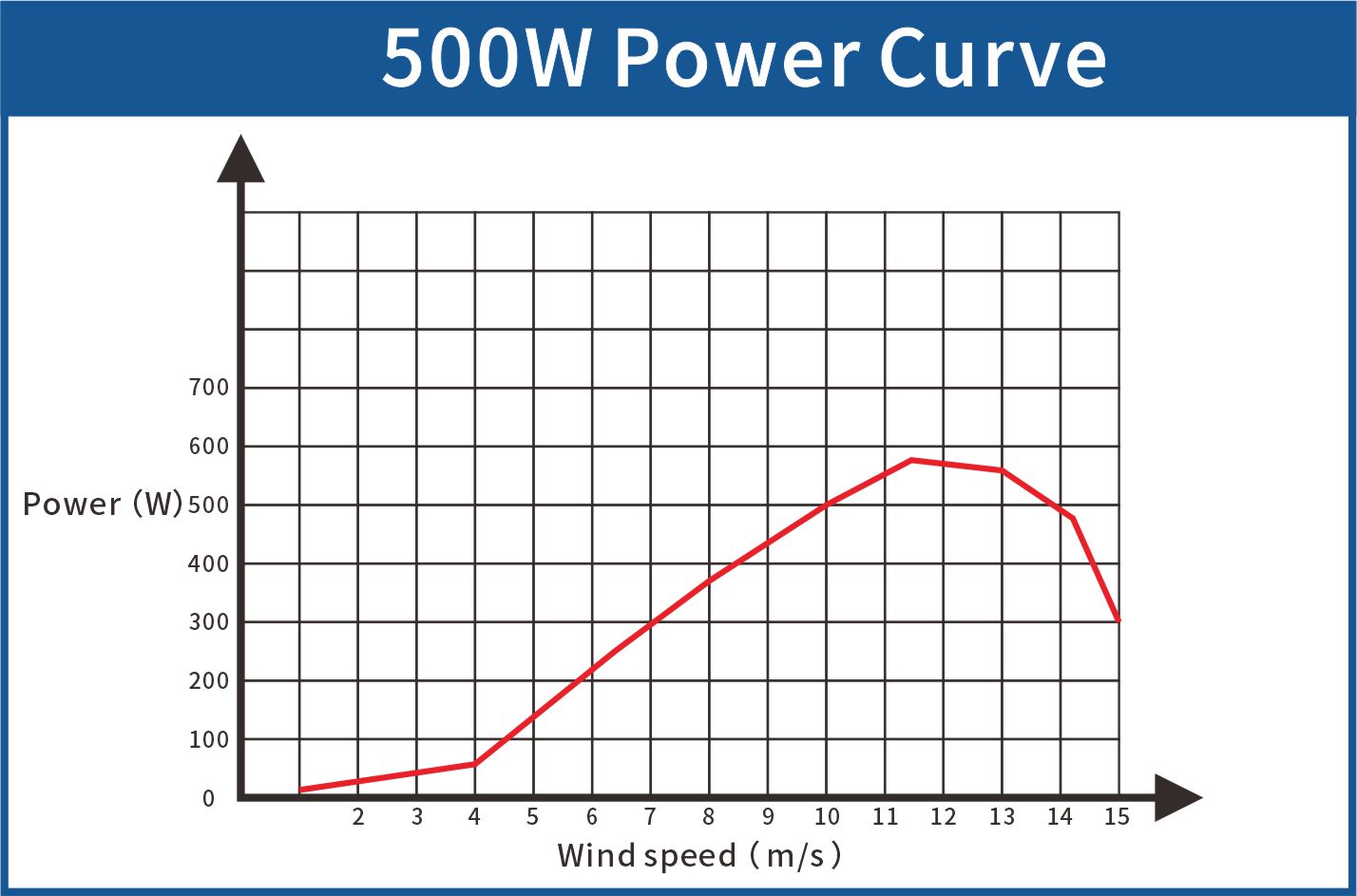

| Rated power | 500W |
| Rated voltage | 12V/24V/48V |
| Cut-in wind speed | 3m/s |
| Start wind speed | 2m/s |
| Rated wind speed | 10m/s |
| Safe wind speed | ≤50m/s |
| Wind wheel diameter | 1.3m |
| Tower height | 6m |
| Blade quantity | 3 |
| Blade material | Reinforced nylon fibres |
| Body material | Fine cast stee |
| Magnet material | N42Sh |
| Generator type | Three-phase AC permanent magnet synchronous generator |
| Control method | Electromagnetic brake + electromagnetic brake |
| Wind direction adjustment | Automatic adjustment of windward angle |
| Life span/Protection | ≥20 years/IP54 |
| Net/Gross | 13kg/15kg |

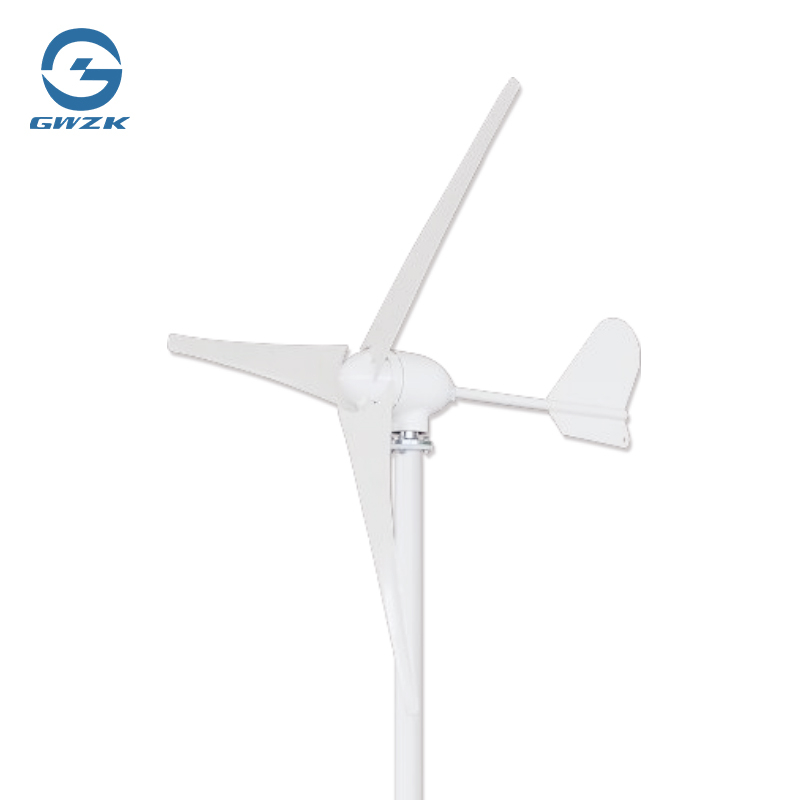

// The following are common application scenarios of the GWS-500W horizontal axis wind turbine:
1. Electricity for homes and small communities
Suitable for households in rural, suburban and remote areas, it can supply power independently or complement the grid. Supports 12V/24V DC output to directly drive low-voltage devices such as LED lighting, water pumps, and refrigerators, or convert to 220V AC power through inverters to meet the needs of high-power home appliances such as air conditioners and washing machines. With a battery pack, excess energy can be stored to achieve 24 hours of stable power consumption.
Typical scene: Rural families: Average daily power 5-8 degrees, meet the family of three to five basic electricity, reduce the power grid.
Self-built villas: As a clean energy supply, reduce the monthly electricity bills by 30% to 50%.
2. Off-grid scenario(Off-grid scenario)
Designed for islands, mountains, grasslands and other areas without grid or unstable power supply, it can operate independently or form a wind-solar complementary system with solar panels (comprehensive power generation efficiency increased by 40%).
For example:
Island base station: For power supply, weather stations, communication stations with battery can support the continuous running 72 hours (when the wind speed of 3 m/s or higher).
Grassland pastures: Electric drive enclosures, livestock drinking water pump and monitoring equipment, solve the ranch scattered power outage.
A remote outpost: As the main power supply, 50 m/s wind resistance design to adapt to the plateau, gobi and other bad environment.
3. Commercial and industrial facilities
For small businesses, distributed power stations, agricultural facilities to provide low-cost electricity plan:
Small processing plants: Support sewing machines, electric welding machine and other small devices, average daily power alternative 2 l diesel (contrast conventional generators, a 85% drop in cost).
Agricultural greenhouse: For the temperature control system, irrigation pump, power supply, as the fill light plant to reduce costs, especially for wind resource rich region.
Distributed power station: A single or more parallel collaborative control (supports multiple machine), detail grid, can meet some needs of the community.
4. Outdoor and emergency scenarios
Light and easy to install, ideal for outdoor operations, temporary projects and emergency disaster relief:
Camping and RV: ADAPTS batteries to power refrigerators, projectors, charging equipment, instead of noisy fuel generators.
Engineering construction site: Temporary lighting, surveillance cameras, small tools for power supply, reduce the cost of cable laying, especially for wind/photovoltaic construction of temporary electricity utilization.
Emergency relief: Rapid deployment in the disaster area, cooperate with energy storage equipment, communications equipment, medical equipment power supply, emergency power guarantee 72 hours.
5. Wind-solar complementary system integration
Combined with solar panels (100-300W PV modules are recommended) to cover all-weather power generation needs:
Off-grid power supply in the scenic spot: Power supply for residential hostel, observation deck lighting and WiFi equipment to create a low-carbon tourism demonstration area.
Wisdom agriculture: Linkage meteorological sensor, automatically adjust the irrigation and ventilation system, realize the "wind and photovoltaic (pv)" double energy security, improve equipment operation stability.
Remote base station: Alternating in wind speed and illumination is insufficient, through intelligent switch controller energy input, to ensure that equipment zero downtime.
Adaptation by scene, the device not only solve the power problem in remote areas, to cost-effective to become family energy saving, more commercial authors and the core of the outdoor power selection.
// GWS-500W Horizontal axis wind turbine usage guide
1. Do not disassemble the equipment by yourself. Contact the after-sales service when the equipment fails.
2. Without authorization, no unit or individual may, security and performance of equipment structure design changes.
3. When using this equipment should follow the relevant laws and regulations, respect the legitimate rights and interests of others.
4. Wind generator connected to the controller must first connect the battery.
5. Not according to the requirements of this manual operation after a fault, such as problems or are beyond the scope of the warranty.
// FAQ
Q: Does installation require professional personnel?
A: No professional team, equipped with standardized support and installation manual, one person can complete the foundation erection within 2 hours. It is recommended that technicians strengthen the base in high wind speed areas.
Q: Is there a lot of noise at work? Is it suitable for residential use?
A: Using low vibration permanent magnet motor and aerodynamic blades, running noise < 50dB (equivalent to quiet conversation), more than 5 meters away from residential areas can meet environmental standards, no high-frequency noise pollution.
Q: Can it be combined with solar panels?
A: Support wind-solar complementary system, through the intelligent controller can seamlessly switch energy input, comprehensive power generation increased by 40%. It is recommended to use 100-300W photovoltaic modules and more than 200Ah batteries for off-grid scenarios.
