// Product Advantages

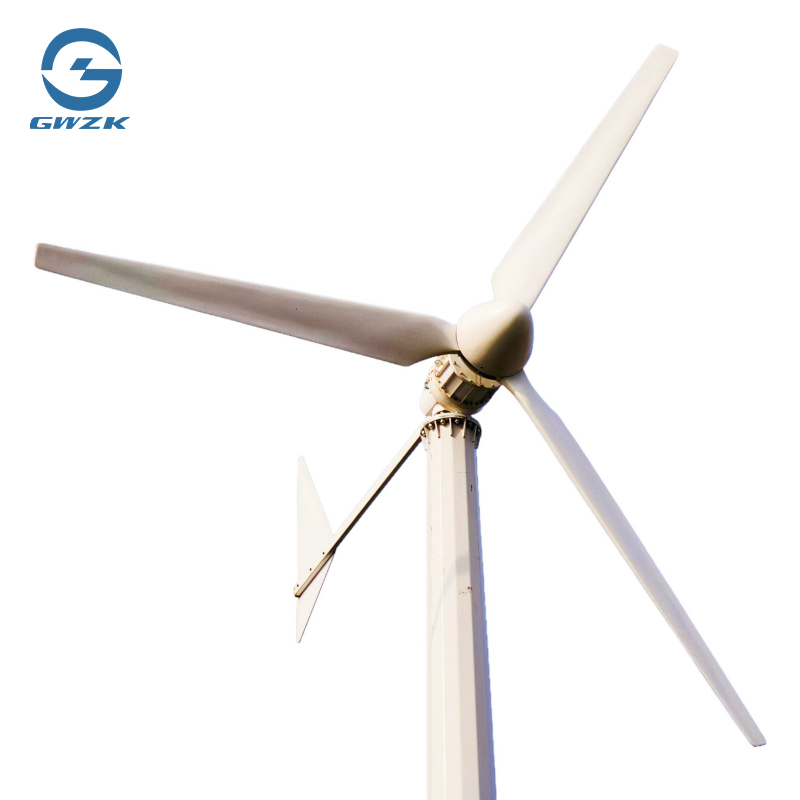

1. Efficient permanent magnet power generation technology, low wind speed start high conversion
Using a three-phase AC permanent magnet synchronous generator with aerodynamically optimized reinforced glass fiber reinforced plastic blades, the wind energy utilization coefficient reaches 0.44, 30% higher than the industry average. Power generation can be started at 2m/s ultra-low wind speed, and the annual power generation can reach 18,000 degrees, meeting the annual electricity demand of 3-5 households.
2. Intelligent adaptive control system, safe operation in all scenarios
Integrated automatic yaw system + electromagnetic braking, real-time tracking of wind direction and adjustment of nose Angle, yaw error < 1°, automatic feathering braking in case of class 12 typhoon. Equipped with MPPT maximum power tracking technology, power generation efficiency is significantly improved, supporting wind-wind complementary linkage control, intelligent switching of solar/wind power supply mode, reducing energy storage system load by more than 30%.
3. Weather resistant design, extreme environment adaptation
Blades made of reinforced glass steel, salt spray test > 1000 hours without corrosion, can operate safely at wind speed below 50m/s; With IP54 protection class control cabinet, the service life is up to 20 years.
4. Modular design and flexible configuration, all-scene energy solutions
Support 12-20 meters tower height customization, suitable for plains, hills, islands and other complex terrain; Provides 220V single-phase / 380V three-phase output mode, which can be seamlessly connected to off-grid energy storage system (matching 5-50kWh lithium battery) or grid-connected inverter (compatible with mains/microgrid).

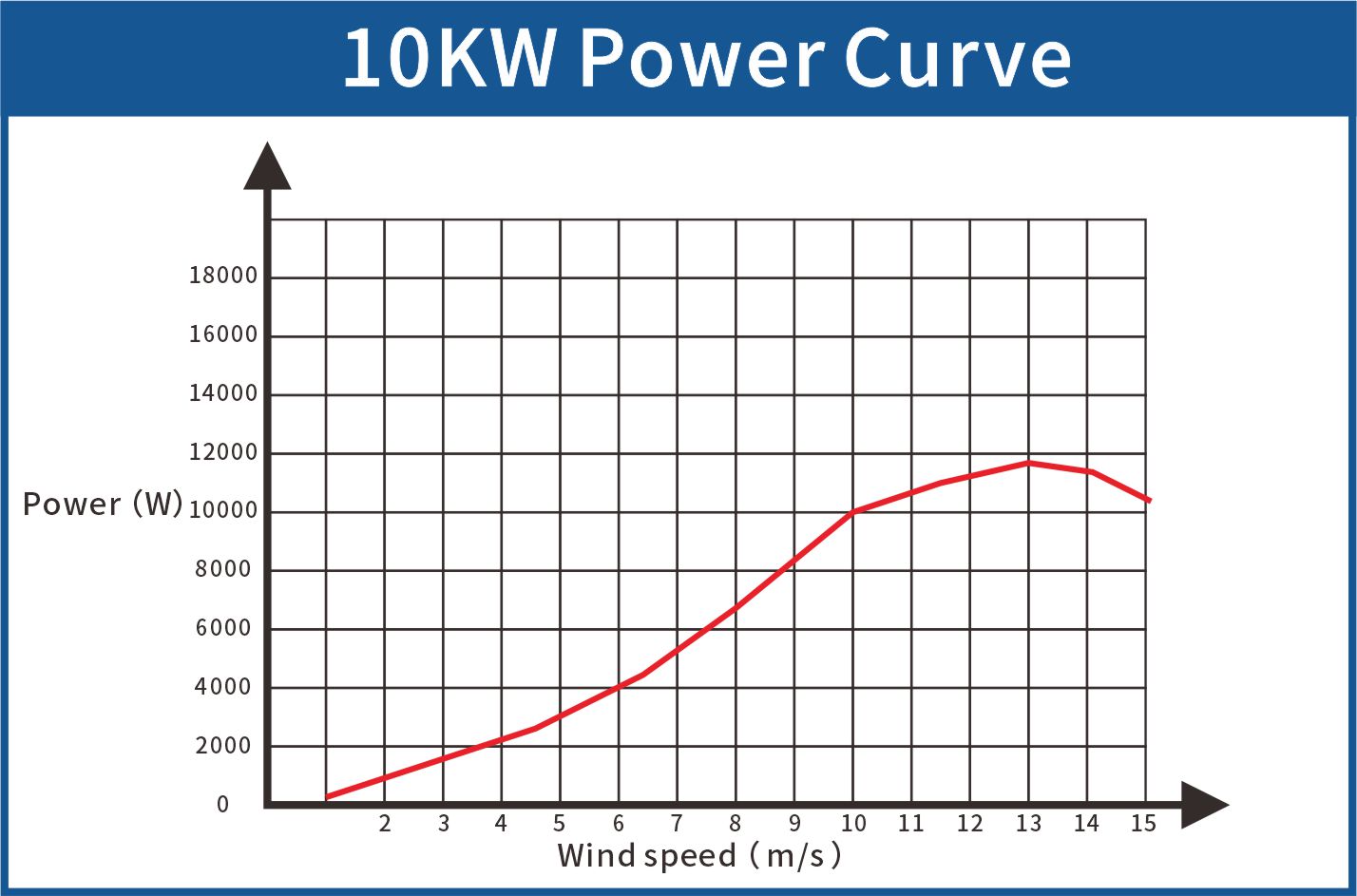

| Rated power | 10KW |
| Rated voltage | 220V/240V/380V |
| Cut-in wind speed | 3m/s |
| Start wind speed | 2m/s |
| Rated wind speed | 10m/s |
| Safe wind speed | ≤50m/s |
| Wind wheel diameter | 6.5m |
| Tower height | 10m |
| Blade quantity | 3 |
| Blade material | Reinforced fiberglass composite materia |
| Body material | Fine cast steel |
| Magnet material | N42Sh |
| Generator type | Three-phase AC permanent magnet synchronous generator |
| Control method | Electromagnetic brake + electromagnetic brake |
| Wind direction adjustment | Automatic adjustment of windward angle |
| Life span/Protection | ≥20 years/IP54 |
| Net/Gross | 400kg/485kg |
// The following are common application scenarios of GWS-10KW horizontal axis wind turbines:
1. Off-grid power supply in remote areas
In mountainous, pastoral or island areas far from the power grid, the WS-10KW horizontal axis wind turbine can operate independently. In remote villages, a single device can provide daily lighting and home appliances for 20 residents, solving the problem of electricity difficulty, stable and reliable power supply, and getting rid of the dependence on traditional diesel power generation.
2. Distributed energy project
It is suitable for distributed energy projects such as industrial parks and commercial complexes. Multiple devices can be deployed in the park to cooperate with solar panels to meet part of the park's electricity demand, reduce electricity costs, help enterprises save energy and reduce emissions, and improve energy self-sufficiency.
3. Electricity for agricultural irrigation and breeding
Farms and ranches use this wind turbine to power irrigation pumps and livestock farm equipment. The pasture relies on it to drive grass processing, ventilation equipment, ensure electricity for livestock breeding, improve agricultural production efficiency, and green environmental protection, in line with sustainable agricultural development.
4. Field monitoring and communication base station power supply
Provide stable power for field meteorological monitoring stations and communication base stations. The communication base station in remote mountainous areas can ensure signal transmission, avoid communication interruption due to power failure, ensure the normal operation of field facilities, and maintain smooth information.
// FAQ
Q: Is the installation complex and does it require professionals?
A: The installation process is not complicated, but in order to ensure safety and power generation effect, it is recommended that professionals operate. We can provide detailed installation guidelines and technical support, from the early site survey to the later commissioning, the whole process of assistance to ensure smooth installation.
Q: How do I connect to the grid?
A: Support off-grid (with energy storage battery) or grid-connected mode, grid-connected need to configure a dedicated inverter, the process is simple, provide technical support throughout.
Q: How efficient is this 10KW horizontal axis wind turbine?
A: It is equipped with advanced permanent magnet synchronous generators, and the wind energy utilization coefficient is as high as 0.44, which is about 30% higher than that of ordinary models, and the power generation efficiency is far higher than that of similar products.
