1.Supports eSupport multiple communication protocols with strong adaptability.
2.Excellent compatibility, suitable for various energy storage application scenarios.
3.High-power fast charging with high charging efficiency.
4.Large energy storage capacity and superior power storage performance.
5.Ultra-long cycle life with long service years.
6.Built-in intelligent circuit protection for comprehensive safety protection.

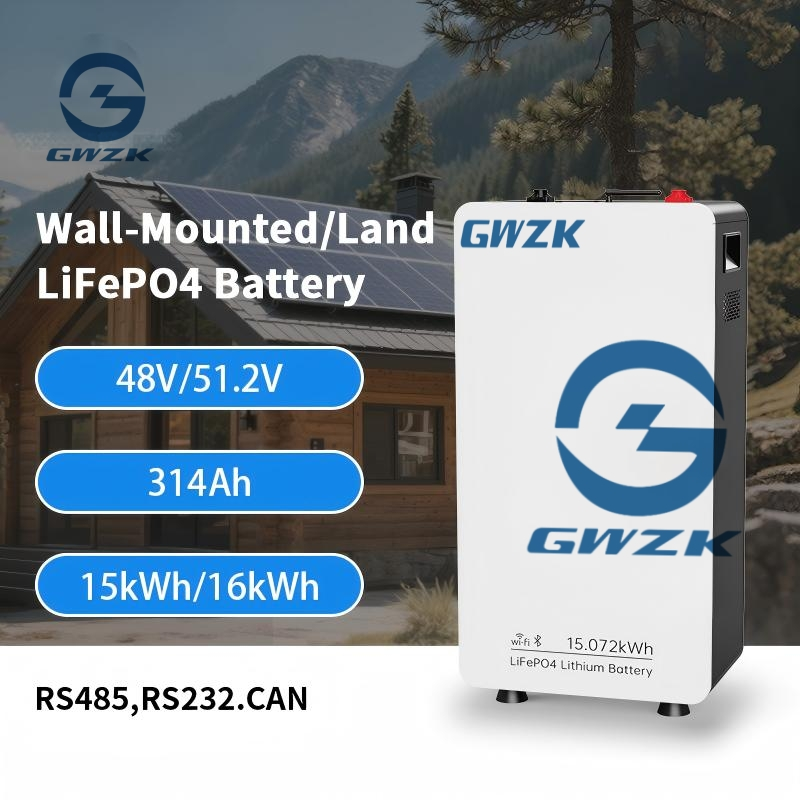

Parameter Category | Parameter Item | 48V Series（GWB48-314-1/2） | 51.2V Series（GWB51.2-314-1/2） |
|---|---|---|---|

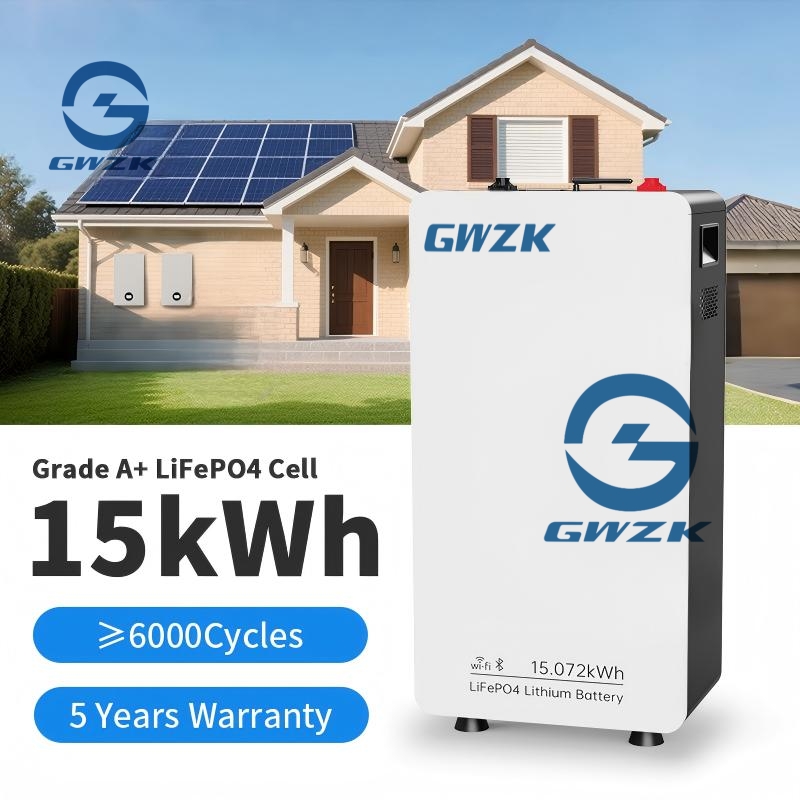

Basic Battery Parameters | Rated Voltage | 48V | 51.2V |
Energy Storage Capacity | 15.07KWh | 16.07KWh | |
Cell Configuration | 15S-1P | 16S-1P | |
Single Cell Specification | 3.2V 314AH | 3.2V 314AH | |
Rated Capacity | 314AH | 314AH | |
Maximum Parallel Units | Up to 16 units in parallel | Up to 16 units in parallel | |
BMS Communication | RS485 | RS485 | |
Charging Efficiency | ≥98% | ≥98% | |
Design Service Life (25℃) | 15 years | 15 years | |

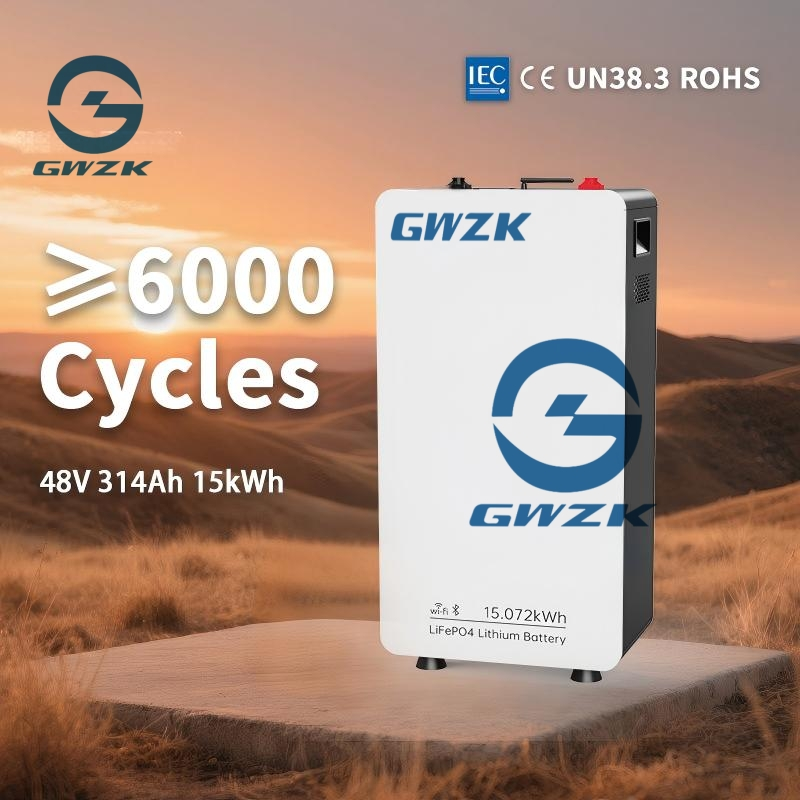

Cycle Life (80% DoD, 25℃) | 6000 cycles | 6000 cycles | |
Electrical Parameters | Charge Cut-off Voltage | 54V | 57.6V |
Discharge Cut-off Voltage | 40.5V | 43.2V | |
Max. Continuous Charging Current | 150A | 150A | |
Max. Continuous Discharging Current | 150A | 150A | |
Factory SOC | 30%-50% SOC | 30%-50% SOC | |
Environmental Parameters | Charging Operating Temperature | 0℃～55℃ | 0℃～55℃ |
Overall Operating Temperature | -10℃～+55℃ | -10℃～+55℃ | |
Storage Temperature | -20℃～60℃ | -20℃～60℃ | |
Dimension & Weight | Dimension (LWH) | 740395250mm | 740395250mm |
Net Weight | 112-115kg | 112-115kg |
Q1: Is the installation complicated?
A: Wall-mounted and floor-mounted dual installation methods are supported. The whole machine is integrated factory delivery. Only fixing the unit and connecting positive/negative poles and communication lines are required. Ordinary electricians can complete the installation without complicated assembly.
Q2: What type of cell is adopted? Is it safe?

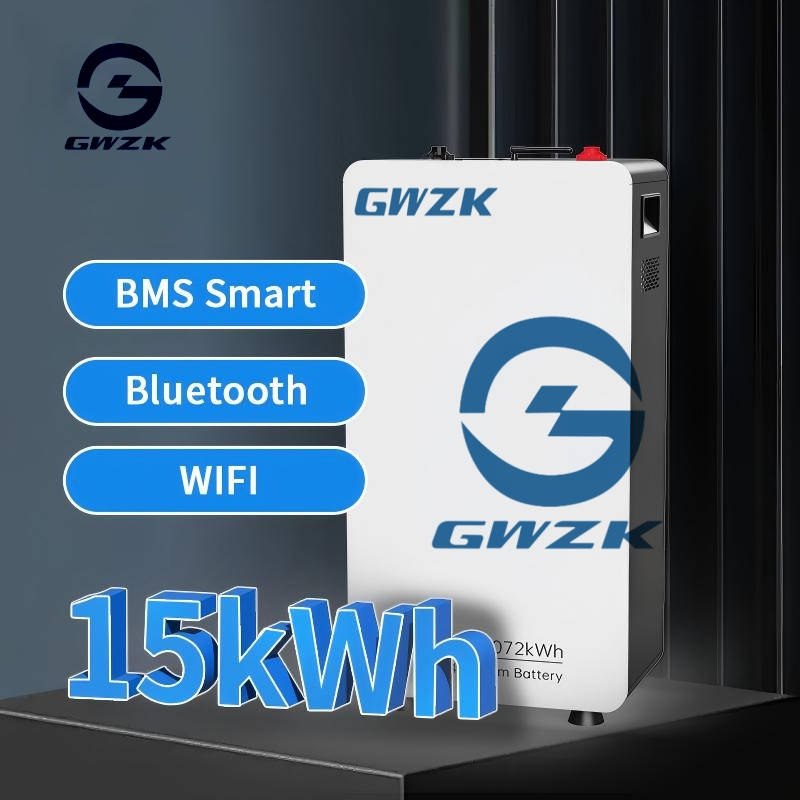

A: Adopts lithium iron phosphate cell, featuring high temperature resistance and strong thermal stability, non-flammable and non-explosive. Built-in BMS intelligent management system provides all-round protection against overcharge, overdischarge, overcurrent, over-temperature and short circuit.
Q3: Does it support parallel expansion?
A: Parallel connection of multiple identical batteries is supported for flexible capacity expansion, ideal for household energy storage expansion and small industrial & commercial energy storage scenarios.
Q4: Can it be used in high and low temperature environments?
A: Charging temperature range: 0℃～45℃; Discharging temperature range: -20℃～60℃. It can be installed indoors, in garages, power distribution rooms and other regular places.
Q5: Is daily maintenance required?
A: Maintenance-free design. No water refilling or parameter calibration needed. Just keep the installation environment well-ventilated and dry without blocking the heat dissipation area.
