Long Cycle Life — 6000 cycles (25°C, 80% DOD), effectively reducing the total cost of ownership.
Extended Service Life — Low-maintenance battery with stable chemical composition.
Built-in Circuit Protection — Integrated Battery Management System (BMS) to prevent battery abuse.
Superior Storage Performance — Ultra-low self-discharge rate (LSD) with no sulfation risk, supporting up to 6 months of storage.
Fast Charging — Outstanding charge-discharge efficiency saves time and reduces downtime.
Excellent Heat Resistance — Suitable for a wider range of applications with extreme ambient temperatures, up to +60°C.

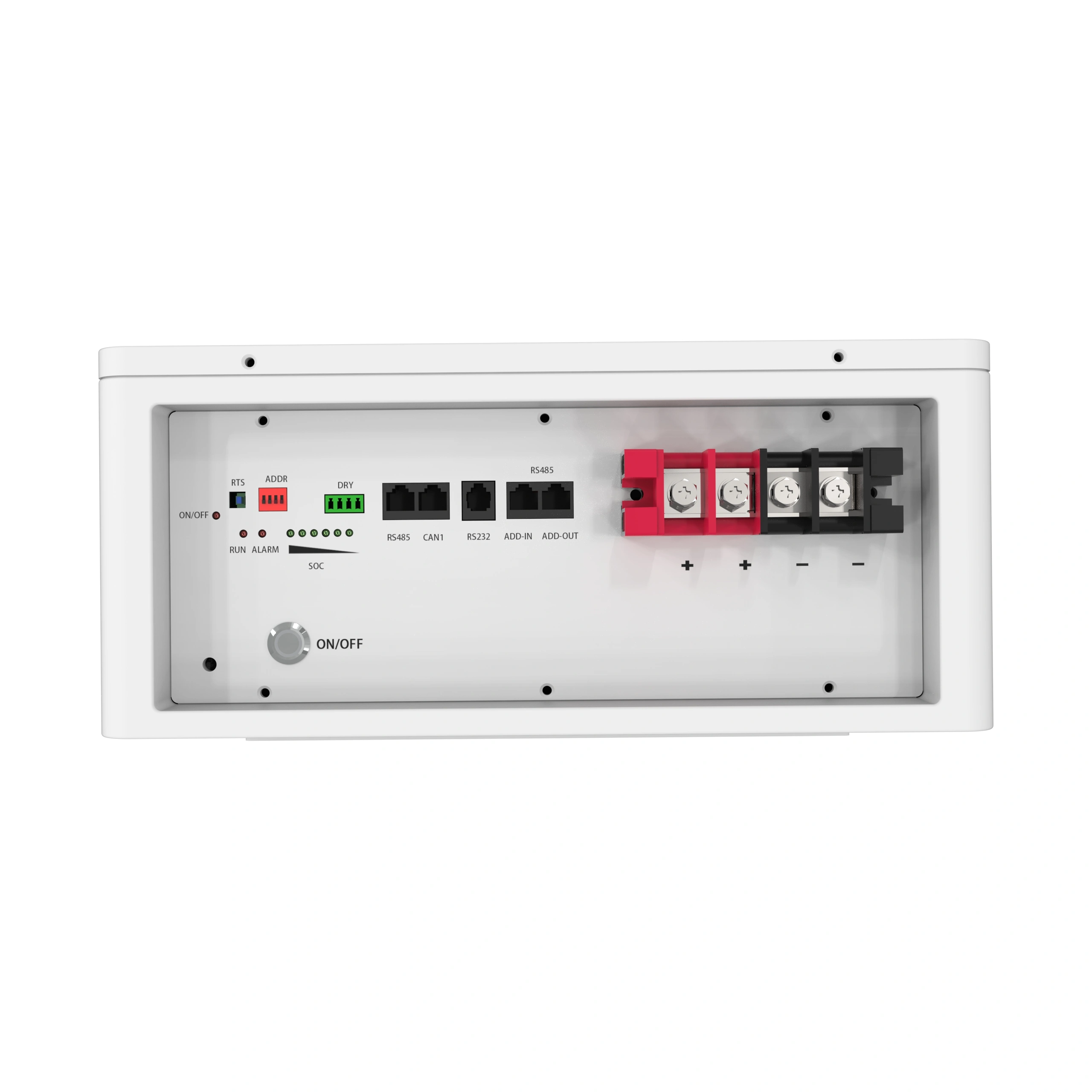

Multiple Communication Protocols — Supports RS485, RS232, CAN, etc.
Strong Compatibility — Compatible with various inverters.
Item | GWB25.6-100 | GWB25.6-200 | GWB51.2-100 | GWB51.2-200 | GWB51.2-280 | GWB51.2-314 |
|---|---|---|---|---|---|---|
Rated Voltage | 25.6V | 25.6V | 51.2V | 51.2V | 51.2V | 51.2V |
Nominal Capacity | 100Ah | 200Ah | 100Ah | 200Ah | 280Ah | 314Ah |
Energy | 2.56KWH | 5.12KWH | 5.12KWH | 10.24KWH | 14.36KWH | 16.07KWH |
Cell Specification | 3.2V 100AH | 3.2V 200AH | 3.2V 100AH | 3.2V 200AH | 3.2V 280AH | 3.2V 314AH |
Configuration | 8S-1P | 8S-1P | 16S-1P | 16S-1P | 16S-1P | 16S-1P |
Charge Cut-off Voltage | 29.2V | 29.2V | 57.6V | 57.6V | 57.6V | 57.6V |
Discharge Cut-off Voltage | 22.4V | 22.4V | 43.2V | 43.2V | 43.2V | 43.2V |
Max Continuous Charging Current | 50A | 100A | 50A | 100A | 100A | 100A |
Max Continuous Discharging Current | 100A | 200A | 100A | 200A | 200A | 200A |
Dimension (LWH) mm | 390370160 | 600370160 | 600370160 | 850500160 | 800512260 | 800523260 |
Weight (kg) | 24 | 41.2 | 41.2 | 80 | 124.3 | 130 |
Parallel Connection | Max 16 units in parallel | Max 16 units in parallel | Max 16 units in parallel | Max 16 units in parallel | Max 16 units in parallel | Max 16 units in parallel |
BMS Communication | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN |
Service Life (25°C) | 15 years | 15 years | 15 years | 15 years | 15 years | 15 years |
Cycle Life (80% DOD, 25°C) | 6000 cycles | 6000 cycles | 6000 cycles | 6000 cycles | 6000 cycles | 6000 cycles |
Charging Efficiency | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% |
Shipping State of Charge | 30%-50% SoC | 30%-50% SoC | 30%-50% SoC | 30%-50% SoC | 30%-50% SoC | 30%-50% SoC |
Operating Temperature | Charge: 0~55°C Discharge: -10~55°C | Charge: 0~55°C Discharge: -10~55°C | Charge: 0~55°C Discharge: -10~55°C | Charge: 0~55°C Discharge: -10~55°C | Charge: 0~55°C Discharge: -10~55°C | Charge: 0~55°C Discharge: -10~55°C |
Storage Temperature | -20~60°C | -20~60°C | -20~60°C | -20~60°C | -20~60°C | -20~60°C |

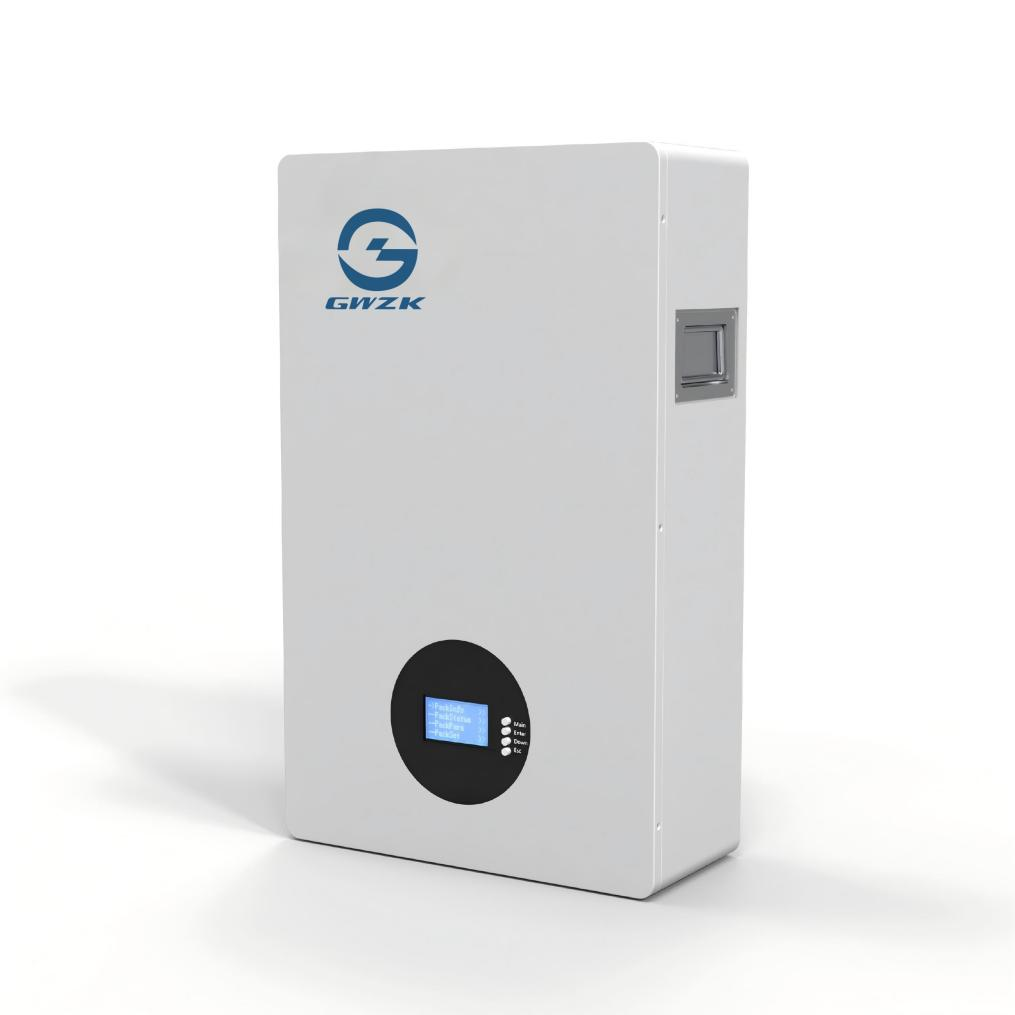

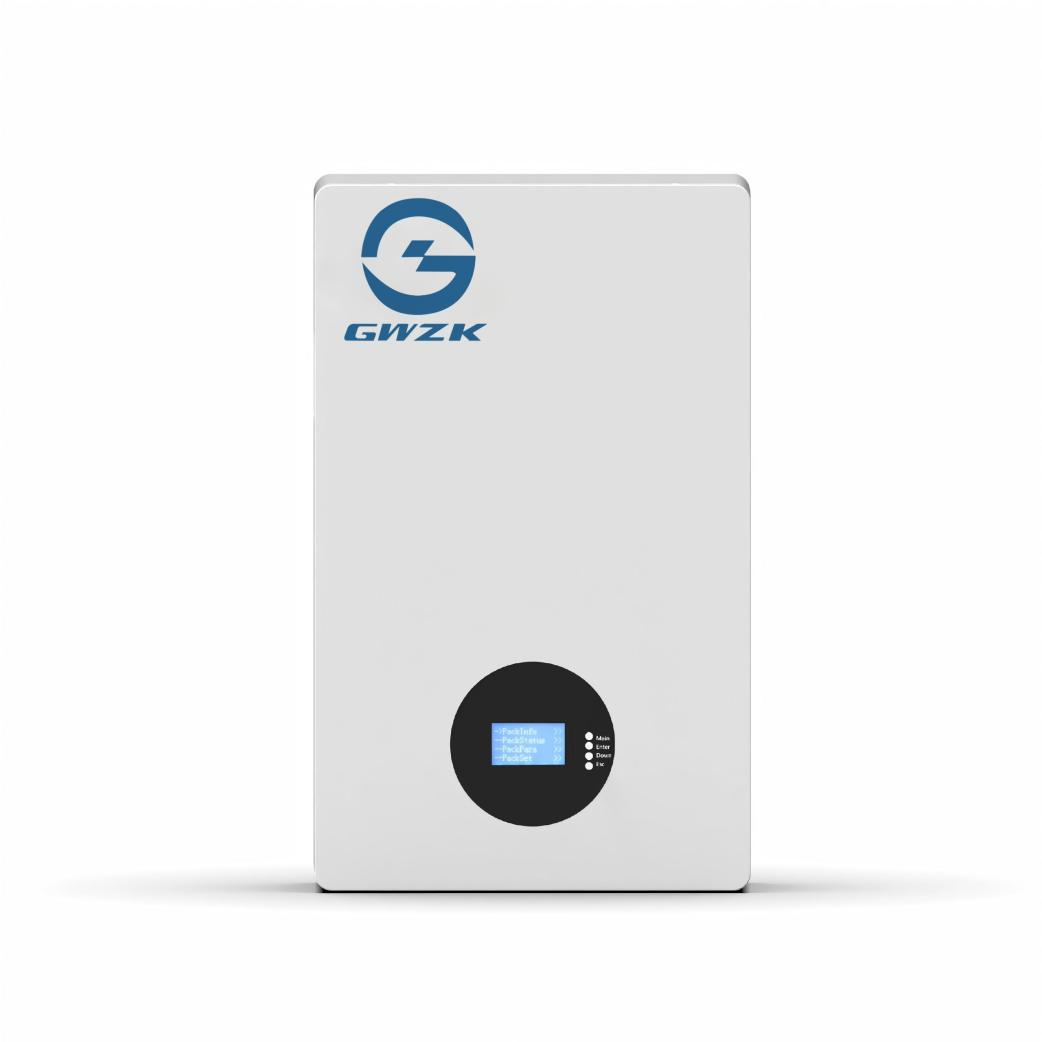

Q1: Is the installation complicated?
A: Wall-mounted installation is adopted. Firmly fix the unit with load-bearing support, and keep it away from damp and rainy environments.
Q2: Can multiple units be used in parallel?
A: Parallel expansion is supported. Only identical models with the same capacity can be connected in parallel, with a maximum of 8-16 units depending on the model.
Q3: How to store the battery when not in use for a long time?
A: Keep the battery level at 50%-60% for storage. Recharge it monthly. Avoid long-term storage at full charge or deep discharge.
Q4: Can it be used in high and low temperature environments?
A: Applicable temperature range: Discharge -20℃ ~ 60℃; Charge 0℃ ~ 55℃.
High-power fast charging is prohibited below 0℃. The BMS will automatically limit current and reduce charging speed. Try not to charge below -10℃, as it may damage the cells and accelerate capacity attenuation.
Q5: Does daily maintenance required?
A: Maintenance-free design. It is only necessary to regularly check the tightness of wiring and ensure good ventilation and heat dissipation.
