Long Cycle Life
6000 cycles at 25°C & 80% DOD, effectively reducing the total cost of ownership.
Extended Service Life
Low maintenance requirement with stable chemical composition for long-term service.
Built-in Circuit Protection
Integrated Battery Management System (BMS) to prevent battery abuse.
Superior Storage Performance
Extremely low self-discharge rate with no sulfation risk, supporting up to 6 months of storage.
Fast Charging
Excellent charge and discharge efficiency saves charging time and reduces downtime.
High Temperature Resistance
Suitable for a wide range of applications with abnormal high ambient temperature, up to +60°C.
Multiple Communication Protocols
Supports RS485, RS232, CAN and other communication methods.
Strong Compatibility
Compatible with most mainstream inverters on the market.
Item | GWB25.6-100 | GWB25.6-200 | GWB51.2-100 | GWB51.2-200 | GWB51.2-280 | GWB51.2-314 |
|---|---|---|---|---|---|---|
Rated Voltage | 25.6V | 25.6V | 51.2V | 51.2V | 51.2V | 51.2V |
Nominal Capacity | 100Ah | 200Ah | 100Ah | 200Ah | 280Ah | 314Ah |
Nominal Energy | 2.56kWh | 5.12kWh | 5.12kWh | 10.24kWh | 14.36kWh | 16.07kWh |
Cell Specification | 3.2V 100Ah | 3.2V 200Ah | 3.2V 100Ah | 3.2V 200Ah | 3.2V 280Ah | 3.2V 314Ah |
Configuration | 8S-1P | 8S-1P | 16S-1P | 16S-1P | 16S-1P | 16S-1P |
Charge Cut-off Voltage | 29.2V | 29.2V | 57.6V | 57.6V | 57.6V | 57.6V |
Discharge Cut-off Voltage | 22.4V | 22.4V | 43.2V | 43.2V | 43.2V | 43.2V |
Max Continuous Charging Current | 50A | 100A | 50A | 100A | 100A | 100A |
Max Continuous Discharging Current | 100A | 200A | 100A | 200A | 200A | 200A |
Dimension (L×W×H) mm | 390×370×160 | 600×370×160 | 600×370×160 | 850×500×160 | 800×512×260 | 800×523×260 |
Net Weight (kg) | 24 | 41.2 | 41.2 | 80 | 124.3 | 130 |
Parallel Connection | Max 16 units in parallel | Max 16 units in parallel | Max 16 units in parallel | Max 16 units in parallel | Max 16 units in parallel | Max 16 units in parallel |
BMS Communication | RS485 / CAN | RS485 / CAN | RS485 / CAN | RS485 / CAN | RS485 / CAN | RS485 / CAN |
Design Lifespan (25°C) | 15 years | 15 years | 15 years | 15 years | 15 years | 15 years |
Cycle Life (80% DOD, 25°C) | 6000 cycles | 6000 cycles | 6000 cycles | 6000 cycles | 6000 cycles | 6000 cycles |
Charging Efficiency | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% |
Shipping State of Charge | 30%–50% SoC | 30%–50% SoC | 30%–50% SoC | 30%–50% SoC | 30%–50% SoC | 30%–50% SoC |
Operating Temperature | Charge: 0~55°C Discharge: -10~55°C | Charge: 0~55°C Discharge: -10~55°C | Charge: 0~55°C Discharge: -10~55°C | Charge: 0~55°C Discharge: -10~55°C | Charge: 0~55°C Discharge: -10~55°C | Charge: 0~55°C Discharge: -10~55°C |
Storage Temperature | -20~60°C | -20~60°C | -20~60°C | -20~60°C | -20~60°C | -20~60°C |
Q1: Is the installation complicated? What are the installation requirements?

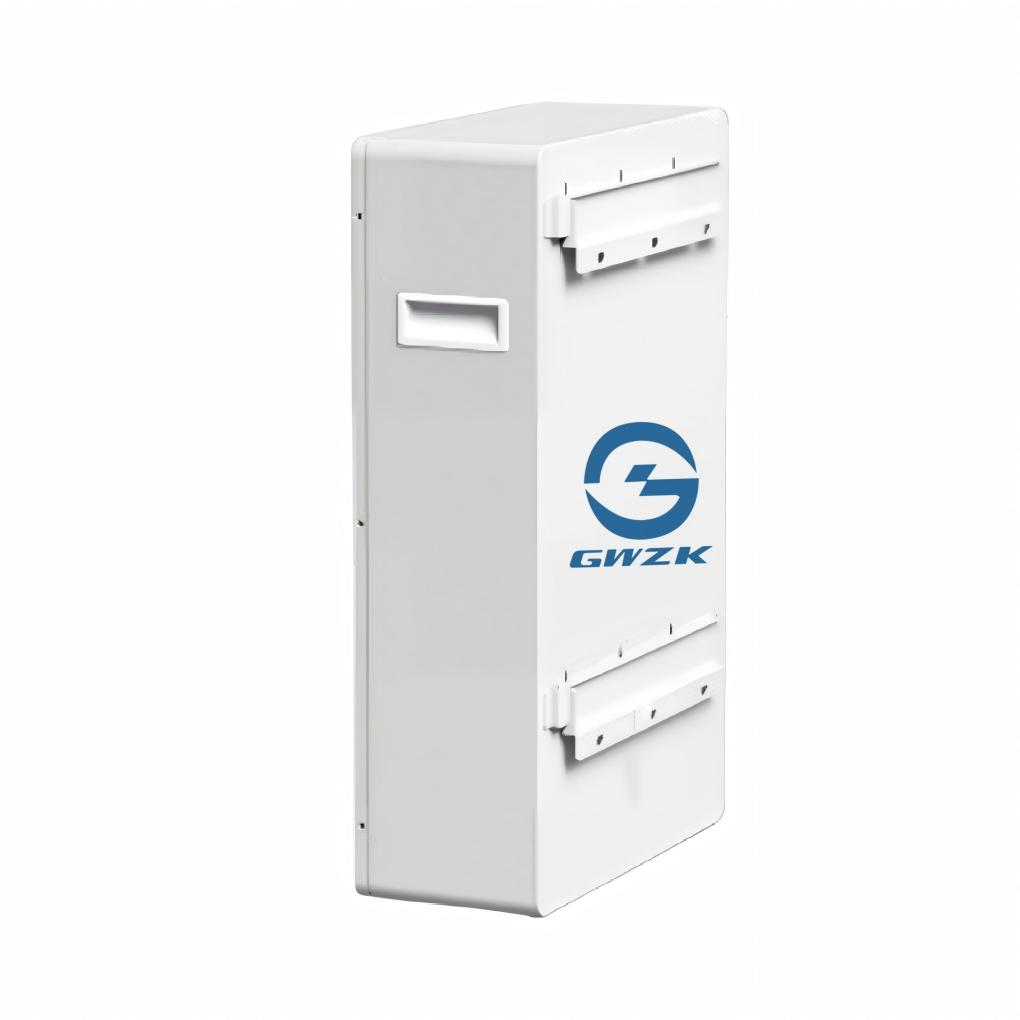

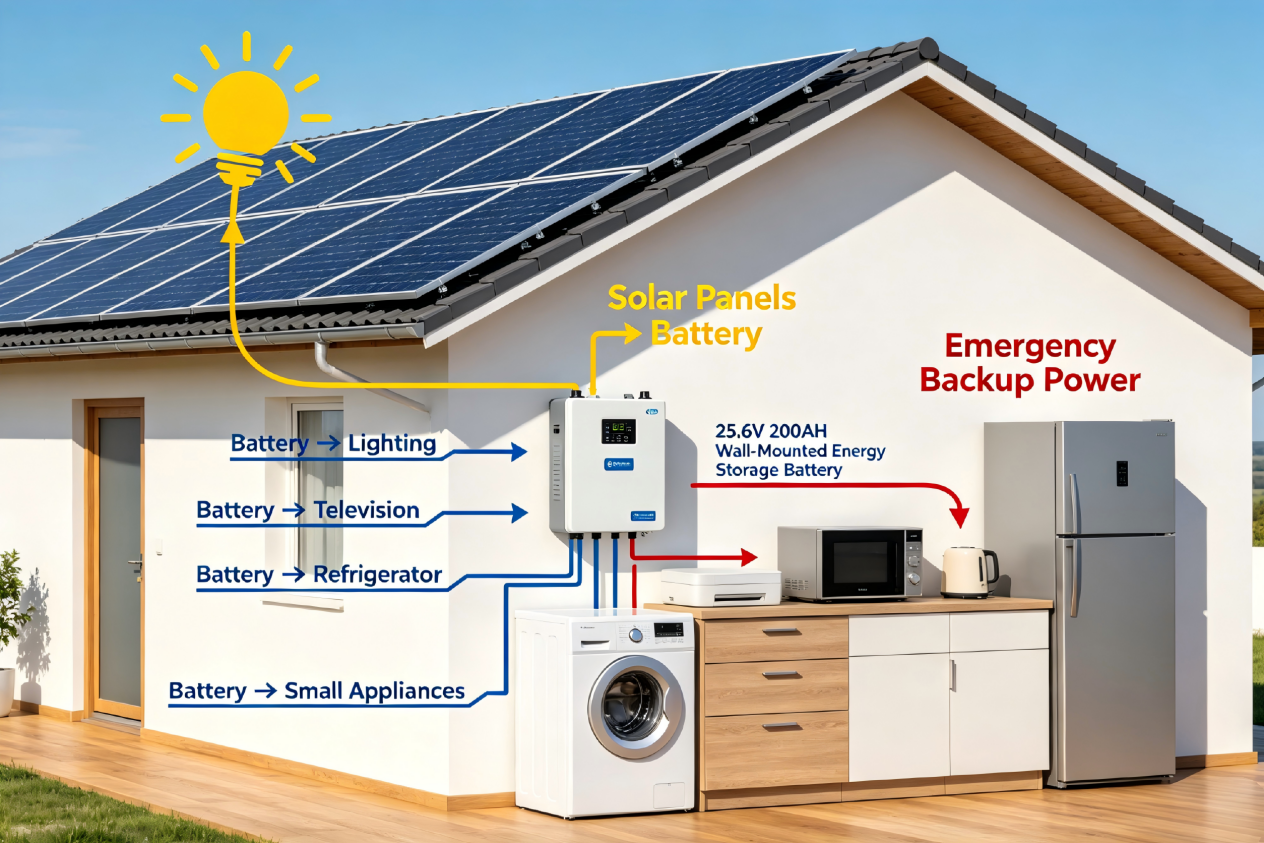

A: Adopts wall-mounted design with integrated mounting bracket. It can be fixed directly on the wall without occupying floor space.
Only require the wall to meet load-bearing standard, well-ventilated, dry, and kept away from humid & heat sources.
Q2: Can it be used with solar inverters?
A: Compatible with 24V/25.6V solar inverters. Built-in RS485 and CAN communication ports, supporting most mainstream off-grid and on-grid energy storage inverters, realizing solar charging and self-consumption.
Q3: Can multiple units be connected in parallel for capacity expansion? What is the maximum parallel quantity?
A: Same model and same batch batteries support parallel connection for capacity expansion. Normally up to 4~8 units can be connected in parallel, with unified voltage regulation and synchronous charge-discharge, ideal for larger energy storage capacity demands.
Q4: Is it low-temperature resistant? Can it work normally in winter?
A: Equipped with intelligent BMS, providing multi-protection including over-charge, over-discharge, over-current, short circuit, over-temperature and under-temperature, as well as cell balance function.
Effectively prevent fire and battery bulging, ensuring safe and reliable operation.
Q5: Is daily maintenance required?
A: Almost maintenance-free. Just keep the environment ventilated and dry.
For long-term idle storage, maintain SoC at 50%–70%, and recharge every 3–6 months.
