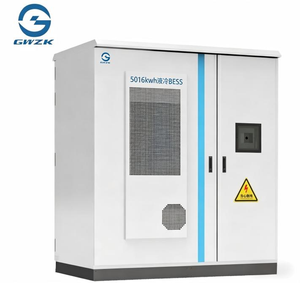

Adopts a high-voltage series architecture with a rated voltage of 832V per cluster. Equipped with high-capacity LiFePO₄ (LFP) battery cells, with a total system energy of 522kWh. Modular design enables easy maintenance, replacement and capacity expansion.
Liquid cooling is the mainstream solution, providing uniform heat dissipation with a cell temperature difference ≤3℃. It ensures stable operation under high-temperature and high-load conditions, extends battery life and improves system reliability.
Smooths fluctuations of wind and solar power generation, stores surplus clean energy to improve utilization efficiency, meets grid connection requirements and reduces wind and solar curtailment.
Over-voltage, under-voltage, over-current and short-circuit protection
Over-temperature, under-temperature and insulation abnormality protection
Thermal runaway warning and fire protection linkage
Can independently form an off-grid microgrid
Provides stable power supply for islands, mining areas and remote regions

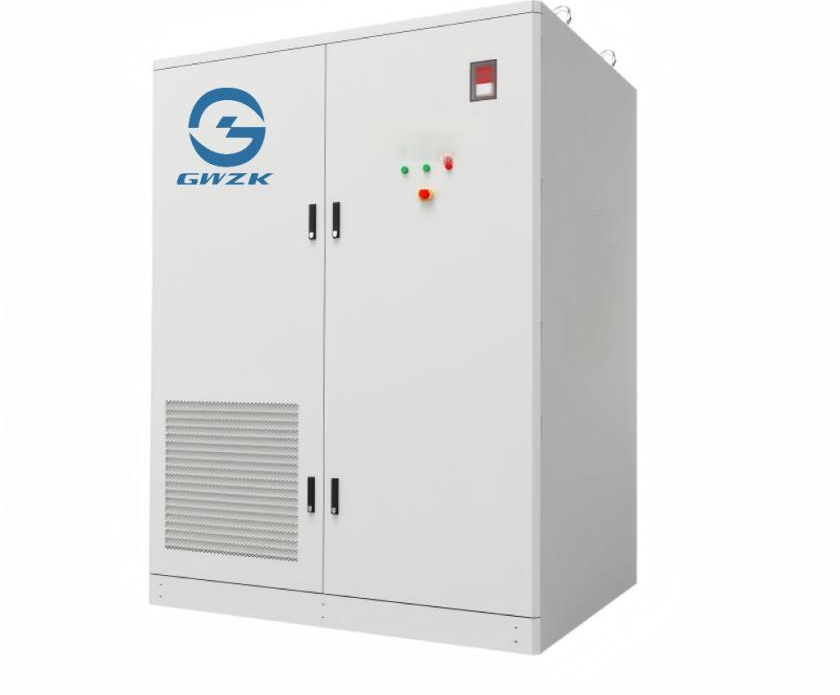

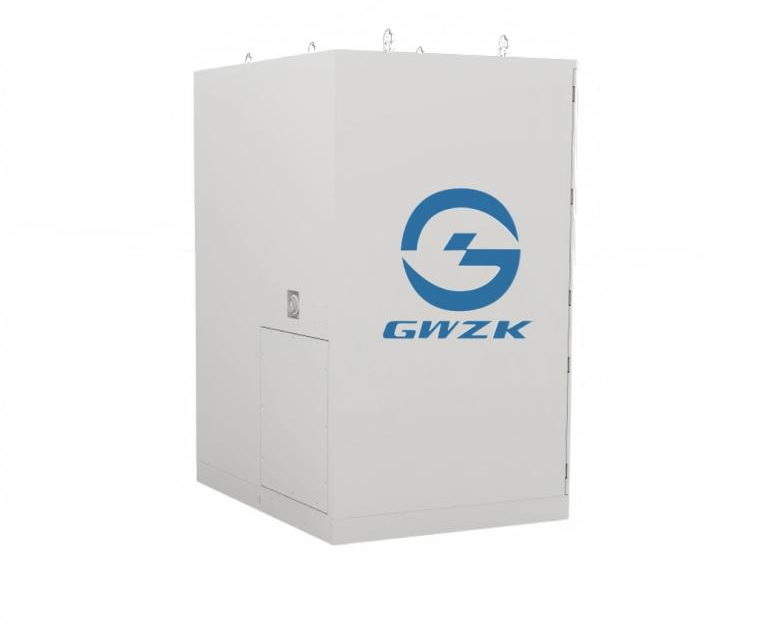

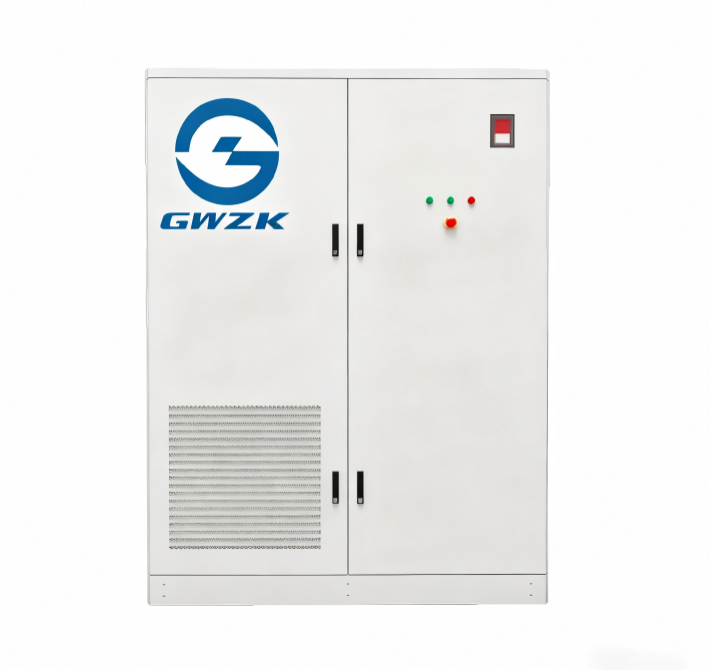

Integrated Plug-and-Play Design
All key components, including long-life LFP batteries, BMS, PCS, fire protection and thermal management systems, are integrated into a standard outdoor cabinet. It simplifies installation, eliminates complex on-site integration and enables rapid deployment.
Comprehensive Safety & Reliability
Equipped with a built-in fire suppression system and advanced Battery Management System (BMS) to enhance operational safety. Durable LFP batteries and a robust thermal management system ensure long service life and high reliability.
Intelligent Remote Monitoring & Control
Provides 24/7 real-time visibility including system overview, battery State of Charge (SOC), current and power consumption. Supports remote control for timely adjustment and reduces on-site maintenance requirements.
Sustainable & Versatile Power Solution
Delivers clean and efficient energy suitable for off-grid and remote areas. Fitted with a multi-point PV controller for seamless integration with solar energy, maximizing efficiency and sustainability.
Category | Item | Parameters |
|---|---|---|
Battery Parameters | Cell Type | 3.2V / 314Ah, LFP |
Rated Voltage | 832V | |
Voltage Range | 650~949V | |
Rated Power | 250kW | |
System Capacity | 522kWh | |
Rated Frequency | 50Hz | |
Charge/Discharge Rate | 0.5C | |
System Parameters | AC Rated Voltage | 400VAC |
AC Wiring Mode | 3P+N+PE | |
Cooling Method | Intelligent liquid cooling | |
Inverter Cooling | Forced air cooling | |
Fire Protection Scheme | Composite detector (smoke, temperature, flammable gas); audible and visual alarm; rack-level and cluster-level spraying; FK-5-1-1-2 clean agent; water-based fire protection | |
Protection Grade | IP54 | |
Communication | CAN, RS485, Ethernet, 4G | |
Cycle Life | ≥6000 cycles | |
Weight | ≈5.4 tons | |
Dimensions | 1940×1504×2555mm | |
Environmental Conditions | Installation | Indoor / outdoor installation (tent shelter recommended) |
Ambient Temperature | -20°C ~ 55°C | |
Humidity | 0~95% (non-condensing) | |
Altitude | ≤3000m (derating required above 3000m) |
Industrial & Commercial Peak Shaving and Valley Filling
Relieves peak power demand pressure and reduces electricity and demand costs.
PV / Wind Power Energy Storage
Smooths power fluctuations, improves new energy consumption rate and realizes integrated wind-solar-storage systems.
Backup Power & Uninterrupted Power Supply
Provides emergency power for data centers, factories and hospitals to ensure uninterrupted operation of critical loads.
Grid-Side Peak & Frequency Regulation
Participates in grid ancillary services, stabilizes voltage and frequency, and improves grid operational safety.
Microgrid & Off-Grid Power Supply
Suitable for islands, mining areas and remote regions to build independent and reliable power supply systems.
Charging Station & Campus Energy Storage
Stabilizes power supply for high-power charging piles and realizes integrated campus energy management.
Q1: Is professional installation required?
A: Yes. As a high-voltage energy storage system involving high-voltage wiring, grid connection commissioning and safe operation, it must be installed by a professional team with power engineering qualifications to ensure safe and stable operation.
Q2: What if battery voltage deviation or rapid capacity fading occurs during operation?
A: The system is equipped with a high-precision BMS intelligent balancing system that automatically calibrates cell voltages and optimizes cell consistency to reduce capacity decay. Daily inspections and regular SOC/SOH calibration effectively avoid such issues and ensure long-term stable battery performance.
Q3: Will the system malfunction under extreme temperatures?
A: No. The system supports wide-temperature operation (discharge: -20℃~+60℃, charge: 0℃~+55℃) with a liquid cooling system that intelligently regulates cabinet temperature and controls temperature difference ≤3–5℃. It automatically derates at high temperatures and preheats at low temperatures to prevent temperature-related failures.
Q4: What is the operating temperature range?
A: Discharge: -20℃~+60℃, Charge: 0℃~+55℃, optimal operating temperature: 20℃~30℃, balancing operational stability and battery life.
Q5: What safety protections does the system have against leakage, overheating and other hazards?
A: Full-range safety protection is provided to effectively eliminate risks. It includes an FK-5-1-1-2 fire suppression system, multi-dimensional detection (temperature, smoke, flammable gas), as well as over-temperature, over-charge, electric leakage and liquid leakage protection. Abnormal conditions automatically trigger isolation, alarm and fire extinguishing linkage.
Q6: Will communication failures or parameter mismatch occur during multi-cabinet parallel expansion?
A: No. The system supports parallel expansion to MWh-level with a unified voltage platform and BMS/EMS communication protocol. Parameter matching and commissioning are completed before delivery, avoiding communication interruptions and mismatches for convenient and stable expansion.
