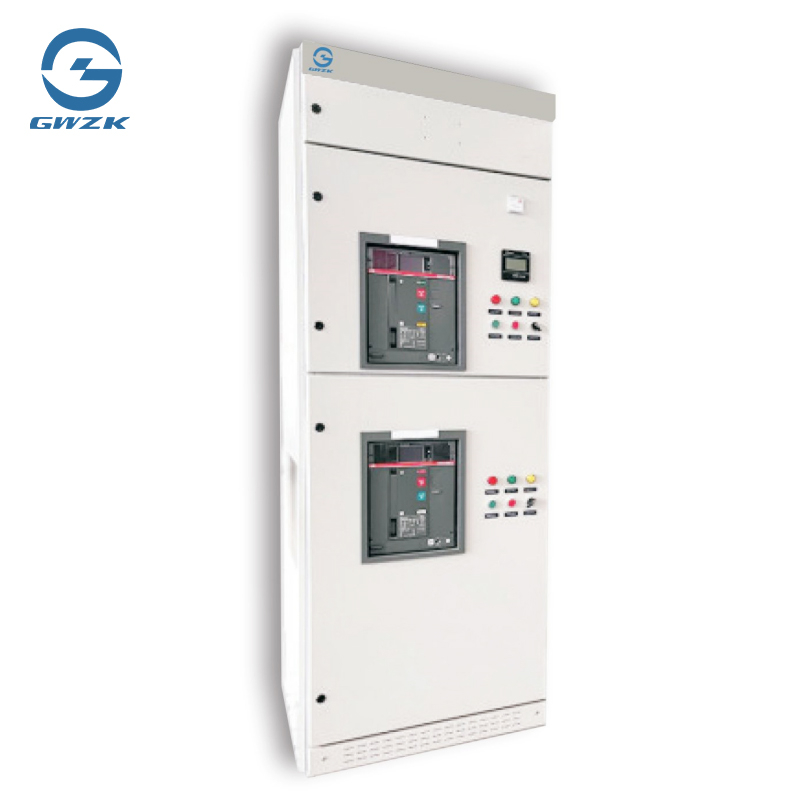

GCS Type
// Product Advantages
1. Intelligent Monitoring and Protection System
The GCS type low-voltage withdrawable complete switchgear is equipped with advanced intelligent monitoring modules, which can collect key data such as current, voltage, and temperature in real time. Through data analysis, it can predict the operation status of the equipment and issue early warnings for potential faults. The built-in multiple protection mechanisms, such as short-circuit protection, overload protection, and leakage protection, can respond rapidly the moment an abnormality occurs, controlling the impact of the fault within the smallest range and building a solid defense line for the safe operation of the power system.
2. Modular and Flexible Design
Adopting a highly modular design concept, each functional unit is independent and can be freely combined to meet the power consumption requirements of different capacities. The drawers of the same functional unit have excellent interchangeability, making it convenient for equipment upgrading and maintenance. At the same time, the equipment can be flexibly configured according to the actual usage scenarios, easily adapting to various complex power system layouts.
3. Excellent Heat Dissipation Performance
The structure of the equipment fully takes into account the heat dissipation requirements. By optimizing the internal air duct design and matching with large-area heat dissipation holes, the air circulation speed is accelerated, effectively reducing the operating temperature of the equipment. High-performance heat dissipation materials are used for key heat-generating components to further improve the heat dissipation efficiency, ensuring that the equipment can maintain stable performance even under high-load operation, extending the service life of the equipment, and reducing the risk of faults caused by overheating.
4. High Protection Level and Environmental-friendly Design
The outer shell is made of high-quality cold-rolled steel plates. Through exquisite surface treatment processes, it has excellent rust-proof and anti-corrosion capabilities, and the protection level can reach IP30 and above, effectively preventing the intrusion of dust and foreign objects. At the same time, the equipment strictly adheres to environmental protection standards during the production process, selects green and environmentally-friendly materials, reduces the use of harmful substances, conforms to the concept of sustainable development, and provides reliable support for the green transformation of enterprises.
5. Efficient and Convenient Installation and Maintenance
With a unique assembly structure design, the installation process is simplified, and the installation time is greatly shortened. Each functional unit adopts standardized interfaces, which are convenient for disassembly and replacement, reducing the difficulty and cost of maintenance. The equipment is also equipped with a user-friendly operation indication and fault diagnosis system. Even non-professionals can quickly master the operation of the equipment and simple fault troubleshooting, effectively improving the operation and maintenance efficiency.
Item | Unit | Parameter | |
Rated Operational Voltage | V | 380,660 | |
Rated Insulation Voltage | V | 660,1000 | |
Rated Current | Horizontal Bus-bars | A | ≤4000 |
Vertical Bus-bars | A | ≤1000 | |
Rated Short-time Withstand Current(ls) | Horizontal Bus-bars | kA | 80 |
Vertical Bus-bars | kA | 50 | |
Rated Peak Withstand Current | Horizontal Bus-bars | kA | 176 |
Vertical Bus-bars | kA | 105 | |
Degrees OfProtection | / | Ip40 | |
// The following are the common application scenarios of the GCS Type Low-voltage Withdrawable Complete Switchgear:
1. Commercial Complexes and High-rise Buildings
In commercial complexes such as large shopping malls, office buildings, hotels, and high-rise buildings, there are numerous and complex electrical equipment, and there are extremely high requirements for the stability and safety of power distribution. The GCS type low-voltage withdrawable complete switchgear can flexibly configure functional units according to the power consumption requirements of different floors and areas to achieve precise power distribution. Its intelligent monitoring system can monitor the power consumption situation of each area in real time, detect abnormalities in a timely manner, and ensure the stable operation of equipment such as lighting, elevators, and air conditioners, providing reliable power guarantees for commercial activities and residents' lives.
2. Industrial Production and Manufacturing
In industrial fields such as mechanical processing, automobile manufacturing, and electronics production, production equipment has a strong dependence on the continuity and stability of power. The excellent dynamic and thermal stability of the GCS type equipment enables it to withstand the current impact caused by the frequent start-up and shutdown of equipment in industrial production, ensuring the uninterrupted operation of the production line. The modular design is convenient for flexibly increasing or decreasing functional units according to the needs of production process adjustment and equipment expansion, adapting to the changes in power consumption at different development stages of the enterprise, and helping industrial enterprises to produce efficiently.
3. Data Centers and Communication Machine Rooms
Data centers and communication machine rooms host a large number of servers and network equipment, and these devices have almost demanding requirements for the stability and reliability of the power supply. The multiple protection mechanisms and intelligent monitoring functions of the GCS type equipment can monitor power parameters in real time, respond quickly to power fluctuations, and avoid data loss and communication interruptions caused by power failures. At the same time, its good heat dissipation performance and high protection level can effectively deal with the high-temperature and high-humidity environment in the machine room, creating a stable operating environment for precision equipment.
4. Transportation Hubs
Transportation hubs such as airports, railway stations, and subway stations have a dense flow of people, and various electromechanical equipment, lighting systems, security inspection equipment, etc. have strict requirements for the power supply. Relying on its high compatibility, the GCS type low-voltage withdrawable complete switchgear can integrate the power management of various electrical equipment to ensure the normal operation order of the transportation hub. Its convenient installation and maintenance characteristics can quickly complete equipment maintenance and upgrading without affecting the normal operation, ensuring the safety of the power supply of the transportation hub.
5. New Energy Power Generation Field
In new energy projects such as wind power generation and solar photovoltaic power generation, the power output has the characteristics of intermittency and volatility. The GCS type equipment can effectively adapt to the special needs of new energy power generation. Through flexible functional configuration and stable power conversion, it can achieve the efficient collection, distribution, and grid connection of new energy power. Its intelligent monitoring system can also monitor the operation status of power generation equipment and the power output situation in real time, helping new energy power generation projects to operate stably and promoting the effective utilization of clean energy.
// FAQ
Q: What is the protection level of the equipment? Is it dustproof and waterproof?
A: The outer shell of the GCS type equipment is made of high-quality cold-rolled steel plates, and the protection level can reach IP30 and above. It can effectively prevent the intrusion of dust and the splashing of water droplets in the vertical direction, meeting the usage requirements of the conventional indoor environment.
Q: Is the installation and maintenance of the equipment complicated? Does it require professional personnel?
A: The equipment adopts a modular design, the installation process is simplified, and the interfaces are standardized. Ordinary technicians can complete the basic installation by referring to the instruction manual. During daily maintenance, the user-friendly operation instructions and fault diagnosis system also make it convenient for non-professionals to troubleshoot simple problems. However, for complex maintenance, it is recommended to be operated by professional personnel.
Q: Does the equipment support remote monitoring?
A: Yes, it does. By selecting the optional communication module, the equipment data can be connected to the enterprise monitoring system to achieve remote real-time monitoring and fault alarm, which is convenient for operation and maintenance personnel to deal with problems in a timely manner.
