GWB5.12kWh 100Ah LiFePO4 Battery

//Product Advantages

1. Long cycle life - 6000 cycles (25℃, 80% DOD), effectively reducing the total cost of ownership

2. Longer service life – low-maintenance battery with stable chemical properties

3. Built-in circuit protection - The Battery Management System (BMS) prevents abuse

4. Better storage - It can be stored for up to 6 months due to its extremely low self-discharge (LSD) rate and no risk of sulfation.

5. Fast charging - Excellent charging/discharging efficiency, saving time, improving production efficiency and reducing downtime

6. High temperature resistance - suitable for a wider range of applications with exceptionally high ambient temperatures: up to +60°C

7. Supports a variety of communication protocols, including RS485, RS232, CAN, etc.

8. High compatibility — compatible with a variety of inverters

//Product data

// FAQs

Q1: What charging options are available?

A: ① Solar charging via PV controller

    ② Mains charging with power adapter

    ③ Rectified charging from generator; Standard charging voltage: 58.4V.

Q2: Is parallel connection available for capacity expansion?

A: Multiple batteries of identical specifications can be connected in parallel to increase total capacity and backup runtime. Random series connection for voltage boosting is prohibited.

Q3: Can it work under low-temperature conditions?

A: Normal discharge is achievable between -20℃ and 55℃ with slight capacity drop at low temperatures. Low-temperature heated version is available as an optional upgrade.

Q4: What commercial devices can it power during blackouts?

A: Freezers, cash registers, LED lights and surveillance cameras. The 5.12kWh unit supplies power to small shops for 4 to 12 hours.

Q5: Storage precautions

A: Store in a cool and dry location; top up charge every 3 months and maintain state-of-charge at 50%~70% during long-term idle storage.

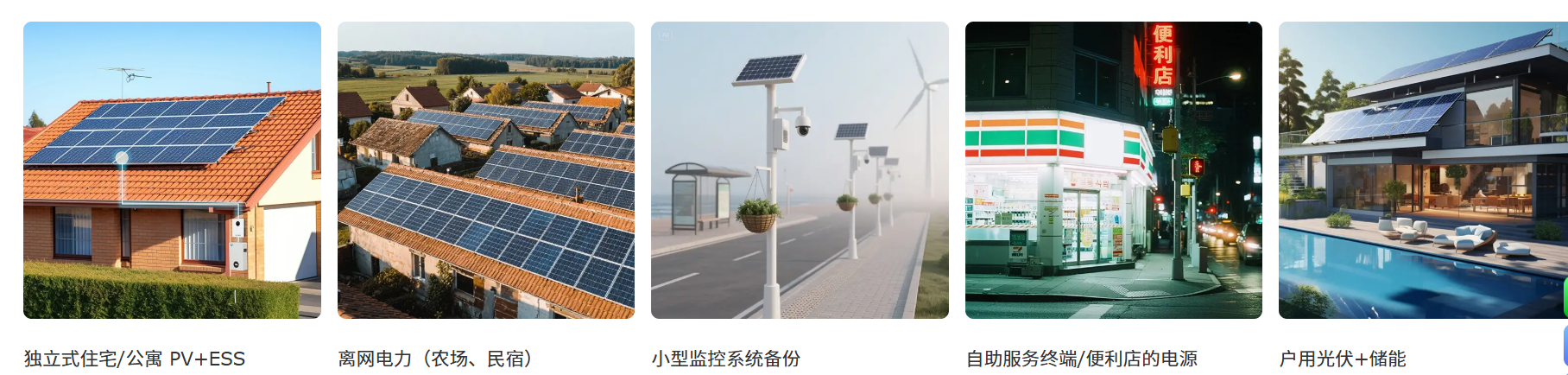

//Application Scenarios
